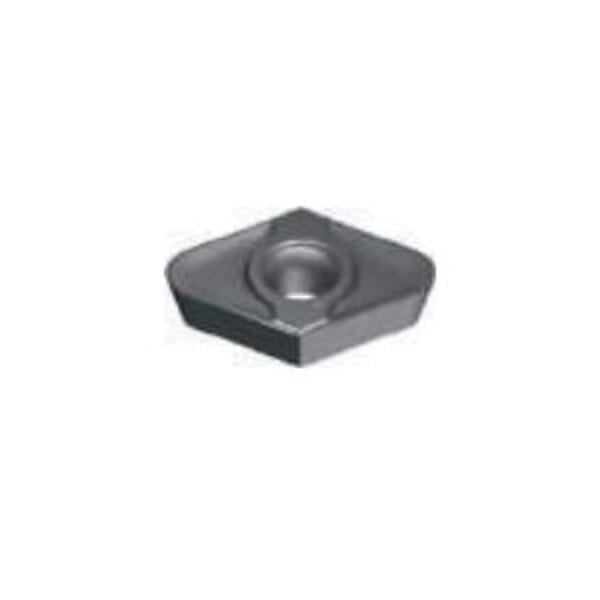

Emuge 9635G.09225 Indexable Milling Insert, Graphite, 55 deg Rhombic Shape, Material Grade: KC2

ManufacturerEmuge

Part #826510408

MFG #9635G.09225

Emuge Milling Insert, Indexable, Series: 9635G, 55 deg Rhombic Shape, 9.2 mm Inscribed Circle, 3.6 mm Thickness, 2.5 mm Corner Radius, 20 deg Rake, Graphite, Diamond, Material Grade: KC2, Aluminum Alloys, Fiber Reinforced Synthetics and Graphite Material Application

$126.24

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Corner Radius: 2.5 mm

Country of Origin: DE

Finish: Diamond

Inscribed Circle: 9.2 mm

Manufacturer Name: Emuge-Franken

Material: Graphite

Material Application: Aluminum Alloys, Fiber Reinforced Synthetics and Graphite

Material Grade: KC2

Rake: 20 deg

Series: 9635G

Shape: 55 deg Rhombic

Thickness: 3.6 mm

Type: Indexable

Special geometries for high feed rates
Rhombic style insert help form a rhombic shape cutter
Graphite designs with 20 deg chip former angle
Diamant "diamond like" coated for wear resistance

Emuge Milling Insert, Indexable, Series: 9635G, 55 deg Rhombic Shape, 9.2 mm Inscribed Circle, 3.6 mm Thickness, 2.5 mm Corner Radius, 20 deg Rake, Graphite, Diamond, Material Grade: KC2, Aluminum Alloys, Fiber Reinforced Synthetics and Graphite Material Application
