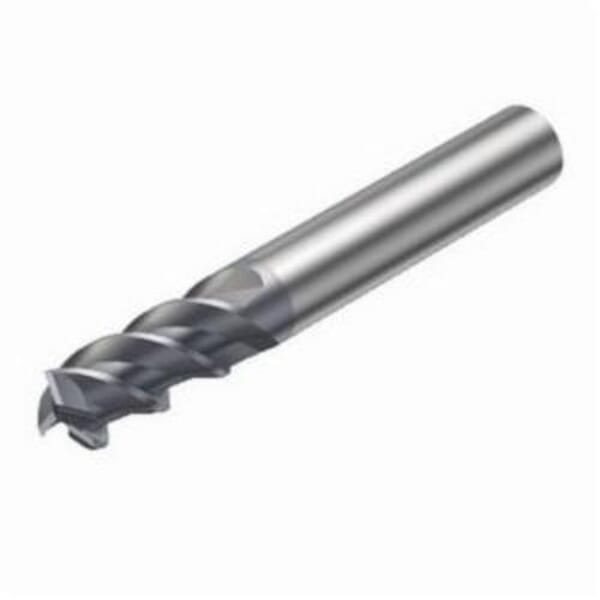

Sandvik Coromant 6259843 CoroMill Plura Square Shoulder End Mill, 0.275 in Dia Cutter, 0.511 in Length of Cut, 3 Flutes, 0.314 in Dia Shank, 2.48 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826259843

MFG #6259843

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.275 in Diameter Cutter, 2.48 in Overall Length, 0.511 in Length of Cut, 3 Flutes, 0.314 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: 1P330-0700-XA 1620, ISO Code: 1P330-0700-XA 1620, Solid Carbide, PVD Coated

$120.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 1P330-0700-XA 1620

Country of Origin: IT

Cutter Diameter: 0.275 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 45 deg

ISO Code: 1P330-0700-XA 1620

Length of Cut: 0.511 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 2.48 in

Series: CoroMill Plura

Shank Diameter: 0.314 in

Shank Type: Cylindrical

Type: Square

1620 manufacturer grade
1.2 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
3.5 mm Dia core at face
0.1 mm W corner chamfer
L cutting length
Without coolant entry
No coolant exit
6.8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
13.5 deg axial rake
13 mm L usable
2 maximum regrinds
27 mm overhang
90 deg y-axis rot
8 deg ramping
80000 r/min

DIN1835-A|DIN6535-HA

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.275 in Diameter Cutter, 2.48 in Overall Length, 0.511 in Length of Cut, 3 Flutes, 0.314 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: 1P330-0700-XA 1620, ISO Code: 1P330-0700-XA 1620, Solid Carbide, PVD Coated
