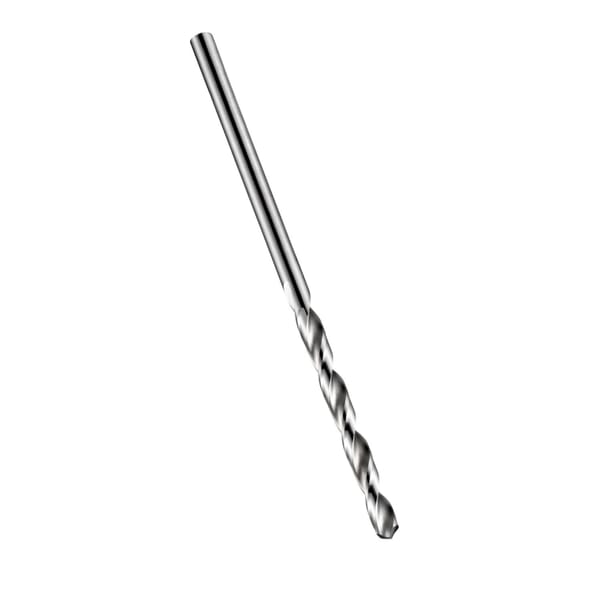

Dormer 5966758 A012 Type N General Purpose Jobber Length Drill Bit, #78 Drill - Wire, 0.016 in Drill - Decimal Inch, 118 deg Point, HSS, TiN Coated

ManufacturerDormer

Part #816074232

MFG #0574232

UPC #7320760574232

Dormer Jobber Length Drill Bit, Type N General Purpose, Series: A012, Imperial, #78 Drill - Wire, 0.016 in Drill - Decimal Inch, 7/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 3/16 in Flute Length, 0.0161 in Shank, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Gold, Applicable Materials: Aluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite

$3.52

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Aluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite

Color: Gold

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.016 in

Drill Size - Wire: #78

Finish: TiN Coated

Flute Length: 3/16 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 7/8 in

Point Angle: 118 deg

Point Type: Split/Self-Centering

Series: A012

Shank Size: 0.0161 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: Type N General Purpose

Low thrust design self-centering split point for easier penetration
TiN coated tip increases surface hardness and improves tool life

ANSI Specified|CSA Approved

For general drilling applications
