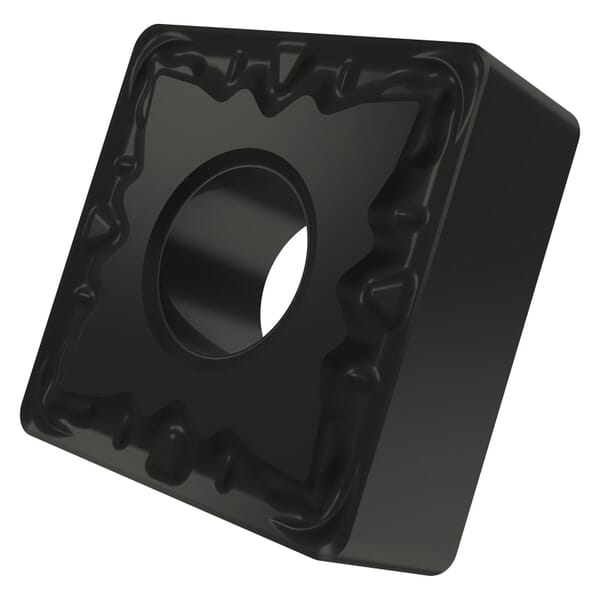

Pramet 6754013 Turning Insert, ANSI Code: SNMG 434-FM:T9325, SNMG Insert, Material Grade: K, M, P, S, 434 Insert, Squared Shape, 12 Seat, Negative Rake, For Use On Stainless Steel, Steel, Cast Iron and Titanium/Super Alloys, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6754013 Turning Insert, ANSI Code: SNMG 434-FM:T9325, SNMG Insert, Material Grade: K, M, P, S, 434 Insert, Squared Shape, 12 Seat, Negative Rake, For Use On Stainless Steel, Steel, Cast Iron and Titanium/Super Alloys, Carbide

ManufacturerPramet

Part #816054013

MFG #6754013

UPC #3603602893796

Pramet Turning Insert, SNMG Insert, 434 Insert, Squared, 0.331 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, FM Chipbreaker, 1/16 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T9325, ANSI Code: SNMG 434-FM:T9325, ISO Code: SNMG 120416E-FM:T9325, 90 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: K, M, P, S, For Use On: Stainless Steel, Steel, Cast Iron and Titanium/Super Alloys

$10.65

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: SNMG 434-FM:T9325

Chipbreaker: FM

Corner Radius: 1/16 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel, Cast Iron and Titanium/Super Alloys

Hole Diameter: 0.203 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 434

Insert Style: SNMG

ISO Code: SNMG 120416E-FM:T9325

Length: 1/2 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9325

Material: Carbide

Material Grade: K, M, P, S

Maximum Depth of Cut: 0.331 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Squared

Thickness: 3/16 in

Width: 1/2 in

T9325 grade functionally gradient substrate
Relatively low content of cobalt binder phase
Thick MT-CVD coating
Highly versatile material with very good operational reliability
Special surface finish for coating
Medium and higher cutting speed
Continuous and interrupted cut
Unfavorable cutting conditions, continuous and/or interrupted cuts
Cutting geometry suitable for grooving and axial turning
For fine turning and finishing

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

ANSI Code: SNMG 434-FM:T9325

Chipbreaker: FM

Corner Radius: 1/16 in

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel, Cast Iron and Titanium/Super Alloys

Hole Diameter: 0.203 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 434

Insert Style: SNMG

ISO Code: SNMG 120416E-FM:T9325

Length: 1/2 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9325

Material: Carbide

Material Grade: K, M, P, S

Maximum Depth of Cut: 0.331 in

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Squared

Thickness: 3/16 in

Width: 1/2 in

T9325 grade functionally gradient substrate
Relatively low content of cobalt binder phase
Thick MT-CVD coating
Highly versatile material with very good operational reliability
Special surface finish for coating
Medium and higher cutting speed
Continuous and interrupted cut
Unfavorable cutting conditions, continuous and/or interrupted cuts
Cutting geometry suitable for grooving and axial turning
For fine turning and finishing

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Specification Sheet

Catalog
