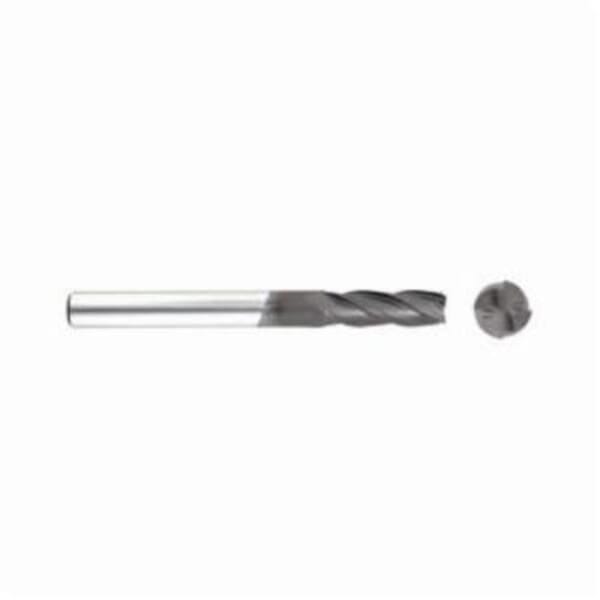

Seco Niagara Cutter 17004955 DIA430M Center Cutting Extended Reach Single End Square End End Mill, 3 mm Dia Cutter, 15 mm Length of Cut, 4 Flutes, 3 mm Dia Shank, 45 mm OAL, DiamondPlus CVD Coated

ManufacturerSeco

Part #803677277

MFG #17004955

Seco Niagara Cutter End Mill, Center Cutting Extended Reach Single End Square End, Series: DIA430M, 3 mm Diameter Cutter, 45 mm Overall Length, 15 mm Length of Cut, 4 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: DIA430M-030-D5-S.0-Z4, ISO Code: DIA430M030D5S.0Z4, Solid Carbide, DiamondPlus CVD Coated

$92.50

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: DIA430M-030-D5-S.0-Z4

Country of Origin: US

Cutter Diameter: 3 mm

Cutting Direction: Right Hand

Finish: DiamondPlus CVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: DIA430M030D5S.0Z4

Length of Cut: 15 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 45 mm

Series: DIA430M

Shank Diameter: 3 mm

Shank Type: Cylindrical

Type: Center Cutting Extended Reach Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Diamond is one of the hardest abrasive coatings, it is commonly used in grinding and polishing ceramic, stone and aluminum alloy
90 deg cutting edge
1.102 in L minimum clamping
30 deg axial rake
10 deg radial rake
D - Cylindrical tool shape
Designed for carbon fiber, composite applications, graphite and green ceramics

Seco Niagara Cutter End Mill, Center Cutting Extended Reach Single End Square End, Series: DIA430M, 3 mm Diameter Cutter, 45 mm Overall Length, 15 mm Length of Cut, 4 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: DIA430M-030-D5-S.0-Z4, ISO Code: DIA430M030D5S.0Z4, Solid Carbide, DiamondPlus CVD Coated

Catalog

Manufacturer Name: Seco Tools

ANSI Code: DIA430M-030-D5-S.0-Z4

Country of Origin: US

Cutter Diameter: 3 mm

Cutting Direction: Right Hand

Finish: DiamondPlus CVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: DIA430M030D5S.0Z4

Length of Cut: 15 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 45 mm

Series: DIA430M

Shank Diameter: 3 mm

Shank Type: Cylindrical

Type: Center Cutting Extended Reach Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Diamond is one of the hardest abrasive coatings, it is commonly used in grinding and polishing ceramic, stone and aluminum alloy
90 deg cutting edge
1.102 in L minimum clamping
30 deg axial rake
10 deg radial rake
D - Cylindrical tool shape
Designed for carbon fiber, composite applications, graphite and green ceramics

Seco Niagara Cutter End Mill, Center Cutting Extended Reach Single End Square End, Series: DIA430M, 3 mm Diameter Cutter, 45 mm Overall Length, 15 mm Length of Cut, 4 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: DIA430M-030-D5-S.0-Z4, ISO Code: DIA430M030D5S.0Z4, Solid Carbide, DiamondPlus CVD Coated
