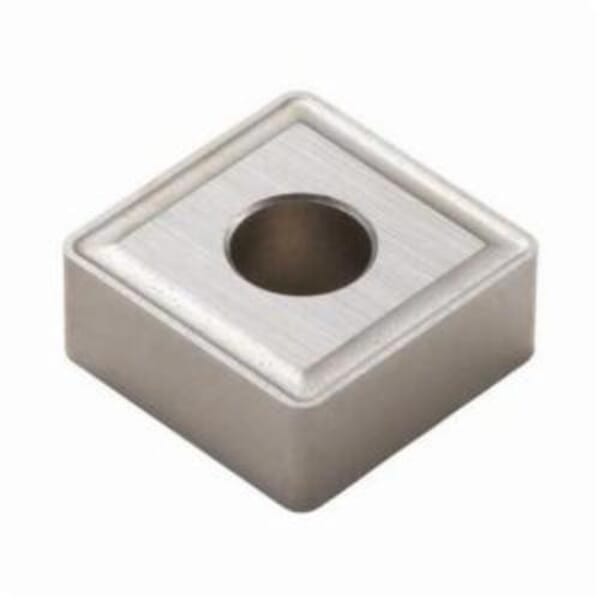

Seco 00003385 Turning Insert, ANSI Code: SNMG866-MR4 883, SNMG Insert, Material Grade: S, 250924 Insert, Squared Shape, 25 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: 883

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00003385 Turning Insert, ANSI Code: SNMG866-MR4 883, SNMG Insert, Material Grade: S, 250924 Insert, Squared Shape, 25 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturers Grade: 883

ManufacturerSeco

Part #288503385

MFG #00003385

Seco Turning Insert, SNMG Insert, 250924 Insert, Squared, 18 mm Maximum Depth of Cut, 25.4 mm Inscribed Circle, 9.52 mm Thickness, 25.4 mm Width, 25.4 mm Length, 25 Seat, Negative Rake, MR4 Chipbreaker, 2.4 mm Corner Radius, 9.12 mm Hole Dia, Manufacturers Grade: 883, ANSI Code: SNMG866-MR4 883, ISO Code: SNMG250924-MR4 883, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium

Price Not Available

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: SNMG866-MR4 883
Chipbreaker: MR4
Corner Radius: 2.4 mm
Country of Origin: CZ, IN
Cutting Direction: Neutral
Finish: Uncoated
For Use On: Super Alloys and Titanium
Hole Diameter: 9.12 mm
Included Angle: 90 deg
Inscribed Circle: 25.4 mm
Insert Size: 250924
Insert Style: SNMG
ISO Code: SNMG250924-MR4 883
Length: 25.4 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: 883
Material: Carbide
Material Grade: S
Maximum Depth of Cut: 18 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 25
Shape: Squared
Thickness: 9.52 mm
Width: 25.4 mm
: Seco Turning Insert, SNMG Insert, 250924 Insert, Squared, 18 mm Maximum Depth of Cut, 25.4 mm Inscribed Circle, 9.52 mm Thickness, 25.4 mm Width, 25.4 mm Length, 25 Seat, Negative Rake, MR4 Chipbreaker, 2.4 mm Corner Radius, 9.12 mm Hole Dia, Manufacturers Grade: 883, ANSI Code: SNMG866-MR4 883, ISO Code: SNMG250924-MR4 883, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium
: Video Link

: Manufacturer Name: Seco Tools
ANSI Code: SNMG866-MR4 883
Chipbreaker: MR4
Corner Radius: 2.4 mm
Country of Origin: CZ, IN
Cutting Direction: Neutral
Finish: Uncoated
For Use On: Super Alloys and Titanium
Hole Diameter: 9.12 mm
Included Angle: 90 deg
Inscribed Circle: 25.4 mm
Insert Size: 250924
Insert Style: SNMG
ISO Code: SNMG250924-MR4 883
Length: 25.4 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: 883
Material: Carbide
Material Grade: S
Maximum Depth of Cut: 18 mm
Rake: Negative
Relief Angle: 0 deg
Seat Size: 25
Shape: Squared
Thickness: 9.52 mm
Width: 25.4 mm
: Seco Turning Insert, SNMG Insert, 250924 Insert, Squared, 18 mm Maximum Depth of Cut, 25.4 mm Inscribed Circle, 9.52 mm Thickness, 25.4 mm Width, 25.4 mm Length, 25 Seat, Negative Rake, MR4 Chipbreaker, 2.4 mm Corner Radius, 9.12 mm Hole Dia, Manufacturers Grade: 883, ANSI Code: SNMG866-MR4 883, ISO Code: SNMG250924-MR4 883, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium
: Video Link
