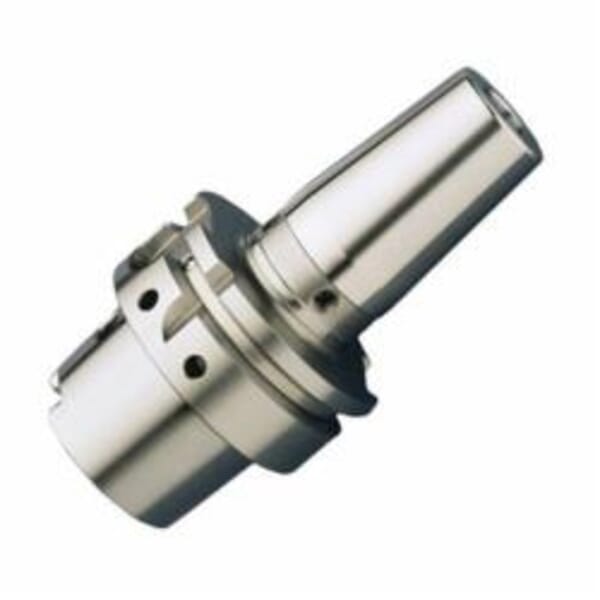

Haimer A10.144.25 Standard ZG130 Shrink Fit Chuck, Tapered Shank, HSKA100 Machine Side, For Use With Shrink Fit Unit, HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer A10.144.25 Standard ZG130 Shrink Fit Chuck, Tapered Shank, HSKA100 Machine Side, For Use With Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129502546

MFG #A10.144.25

UPC #4034221021779

Haimer Shrink Fit Chuck, Standard ZG130, System Size Machine Side: HSKA100, 25 mm Hole Dia, Tapered Shank, 44 mm Nose Dia, 130 mm Projection, For Use With: Shrink Fit Unit, HSS and Solid Carbide Tools, 53 mm Body Dia Workpiece Side, 58 mm Clamping Length, Yes Through Coolant (Yes/No)

$656.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 53 mm

Clamping Length: 58 mm

Hole Diameter: 25 mm

Nose Diameter: 44 mm

Projection: 130 mm

Shank Type: Tapered

Suitable For Use With: Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA100

Through Coolant (Yes/No): Yes

Type: Standard ZG130

Back-Up Screw

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Heat resistant hot working steel
With threaded holes in order to balance with balancing screws
High runout accuracy (Less than 3 µm)
Extreme clamping torque by high pressing in the clamping bore
Short chamfer
Dynamic form reinforced shank at long tool holders
Compromise between slimness (marginal interference contour) and rigidity
Dual face contact
Cooling with cool jet for an extra charge
Cooling with cool flash for an extra charge

Back-Up Screw

DIN 69893-1/69882-8
