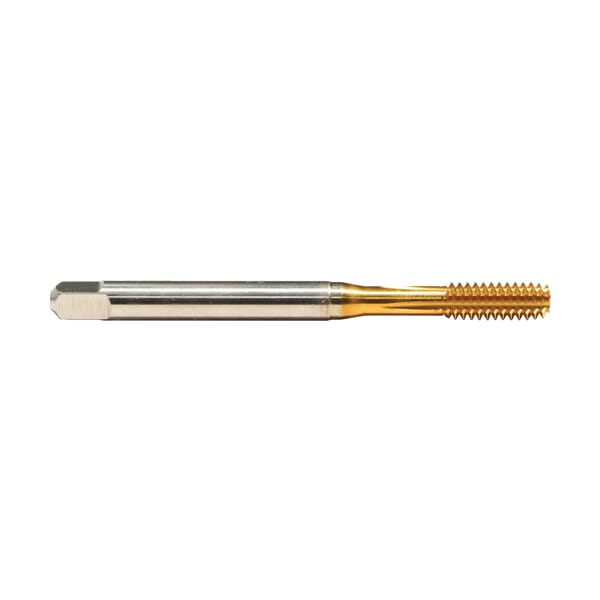

MultiTAP - Roll Form MultiTAP B5991400.0020 Druck B5991400 Form E Thread Forming Tap, M2x0.4 Thread

ManufacturerMultiTAP - Roll Form

Part #826504235

MFG #B5991400.0020

MultiTAP - Roll Form MultiTAP Thread Forming Tap, Form E, Series: Druck B5991400, Measurement System: Metric, M2x0.4, Coarse, Bottoming Chamfer, 7 mm Thread Length, 45 mm Overall Length, Right Hand Cutting, Class of Fit: 6HX, 2.8 mm Shank Dia, 33 mm Shank Length, Cobalt, TiN Coated

$42.54

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Manufacturer Name: Emuge-Franken

Material: Cobalt

Measurement System: Metric

Overall Length: 45 mm

Series: Druck B5991400

Shank Diameter: 2.8 mm

Shank Length: 33 mm

Thread Length: 7 mm

Thread Size: M2x0.4

Thread Standard: Coarse

Type: Form E

MultiTAP form is a chipless roll form version of the universal MultiTAP design
This all purpose design is well suited to the job shop, short run tapping environment
TiN coated for extended tool life
Lubrication grooves for improved forming action
DIN/DIN standard dimensions for overall length and shank size

DIN/DIN Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

MultiTAP - Roll Form MultiTAP Thread Forming Tap, Form E, Series: Druck B5991400, Measurement System: Metric, M2x0.4, Coarse, Bottoming Chamfer, 7 mm Thread Length, 45 mm Overall Length, Right Hand Cutting, Class of Fit: 6HX, 2.8 mm Shank Dia, 33 mm Shank Length, Cobalt, TiN Coated
