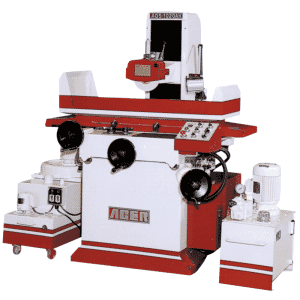

Surface Grinder - #AGS1632AHD; 16 x 32'' Table Size; 7.5HP; 220V; 3PH Motor
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsSurface Grinder - #AGS1632AHD; 16 x 32'' Table Size; 7.5HP; 220V; 3PH Motor
ManufacturerAcer
Part #RA60AGS1632AHD
MFG #RA60AGS1632AHD
$35,950.00
/ EA- Manufacturer Name: AcerDownfeed: .0025Longitudinal Table Travel: 33-1/16Maximum Grinder Wheel Size: 14 x 2 x 5Maximum Grinding Length: 32Maximum Grinding Width: 16Model Number: AGS1632AHDSpindle Motor: 7.5HP, 220V, 3PHSpindle Speed (RPM): 1750Table Size: 16 x 32
-
- Large 3 Axis Automatic Surface Grinders
- For Basic General Purpose Grinding
- All machines have rapid power, spindle elevation for easy & fast set-up, equipped with automatic lubrication for all way surfaces, Halogen light, splash guards, tool box with tools and a complete and easy-to-operate instruction & parts manual also included.
- Reinforced high column and heavy weight Meehanite casting
- Direct drive spindle equipped with 4 ABEC–7 angular contact ball bearing
- Auto surface and plunge downfeed
- Precision-coated teflon ways
- Double-V crossfeed ways
- Longitudinal ways: one V" and one flat way
- Dual hydraulic pump system: one each for x-axis longitudinal table and z-axis for automatic incremental downfeed
- Electronic y-axis crossfeed
- 24-volt safety circuit control
- Larger surface grinders also available P.O.A."
- Manufacturer Name: AcerDownfeed: .0025Longitudinal Table Travel: 33-1/16Maximum Grinder Wheel Size: 14 x 2 x 5Maximum Grinding Length: 32Maximum Grinding Width: 16Model Number: AGS1632AHDSpindle Motor: 7.5HP, 220V, 3PHSpindle Speed (RPM): 1750Table Size: 16 x 32
-
- Large 3 Axis Automatic Surface Grinders
- For Basic General Purpose Grinding
- All machines have rapid power, spindle elevation for easy & fast set-up, equipped with automatic lubrication for all way surfaces, Halogen light, splash guards, tool box with tools and a complete and easy-to-operate instruction & parts manual also included.
- Reinforced high column and heavy weight Meehanite casting
- Direct drive spindle equipped with 4 ABEC–7 angular contact ball bearing
- Auto surface and plunge downfeed
- Precision-coated teflon ways
- Double-V crossfeed ways
- Longitudinal ways: one V" and one flat way
- Dual hydraulic pump system: one each for x-axis longitudinal table and z-axis for automatic incremental downfeed
- Electronic y-axis crossfeed
- 24-volt safety circuit control
- Larger surface grinders also available P.O.A."
