Contact UsEnd Mill Grinding Fixture - 5C Collet Style
ManufacturerQuality Import
Part #HN50RGF
MFG #HN50RGF

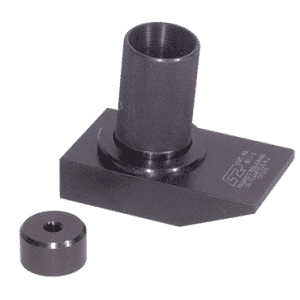

End Mill Grinding Fixture - 5C Collet Style
$85.83
/ EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name: Quality ImportBase: 2-1/2 x 4-1/2Capacity: 1/8Collet Style: 5C
-
- Uses 5C Collets
- This fixture uses 5C Collets (no more bushings to lose) which means any shank size end mill from 1/16 to 1–1/8 can be ground.
- Shell mills can be easily held with straight shank arbors.
- To grind primary relief and center relief, place end mill in fixture and grind one flute; then index to grind opposite flute.
- This will give a 5° primary end relief angle.
- Grinds 2–3–4–6–8 and 12-fluted end mills and shellmills.
- Clearance and relief angles are built into base
- Solid 2–1/2 4–1/2 . Base ground on bottom for sure contact with magnet
- Black oxide finish
- Manufacturer Name: Quality ImportBase: 2-1/2 x 4-1/2Capacity: 1/8Collet Style: 5C
-
- Uses 5C Collets
- This fixture uses 5C Collets (no more bushings to lose) which means any shank size end mill from 1/16 to 1–1/8 can be ground.
- Shell mills can be easily held with straight shank arbors.
- To grind primary relief and center relief, place end mill in fixture and grind one flute; then index to grind opposite flute.
- This will give a 5° primary end relief angle.
- Grinds 2–3–4–6–8 and 12-fluted end mills and shellmills.
- Clearance and relief angles are built into base
- Solid 2–1/2 4–1/2 . Base ground on bottom for sure contact with magnet
- Black oxide finish
