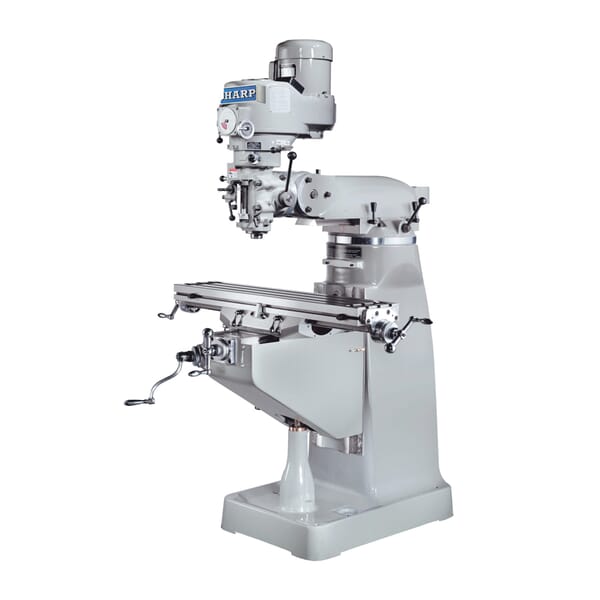

Sharp LMV-42 Knee Type Manual Vertical CNC Milling Machine, 3 hp, 220/440 V, 9 in L x 42 in W Table, 30 in Longitudinal Travel, R-8 Spindle

ManufacturerSharp

Part #848670068

MFG #LMV-42

Sharp CNC Milling Machine, Knee Type Manual Vertical, 9 in L x 42 in W Table, 30 in Longitudinal Travel, 12 in Cross Travel, 16 in Knee Travel, 12 in Ram Travel, 60 to 4500 rpm Spindle Speed, 3 Spindle Speed, R-8 Spindle Taper, 3-3/8 in Quill Diameter, 2.125 to 18 in Spindle to Table Distance, 3 T-Slots, 5/8 in W x 2-1/2 in Pitch T-Slot, 45 deg Tilting Angle, 3 hp, 220/440 V, 8/4 A, 7 x 6.6 x 6.7 ft Dimensions

$12,225.00

/ EA

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 8/4 A

Country of Origin: TW

Cross Travel: 12 in

Dimensions: 7 x 6.6 x 6.7 ft

Horsepower: 3 hp

Knee Travel: 16 in

Longitudinal Travel: 30 in

Manufacturer Name: Sharp-Industries, Inc

Number of Spindle Speeds: 3

Number of T-Slots: 3

Quill Diameter: 3-3/8 in

Ram Travel: 12 in

Spindle Speed: 60 to 4500 rpm

Spindle Taper: R-8

Spindle to Table Distance: 2.125 to 18 in

Table Size: 9 in L x 42 in W

Tilting Angle: 45 deg

T-Slot Size: 5/8 in W x 2-1/2 in Pitch

Type: Knee Type Manual Vertical

Voltage Rating: 220/440 V

One Shot Lube System, Hard Chromed Ways, Front and Rear Rubber Way Covers, Tool Box with Tools and 220/440 V Wired

Chromed ways
Double nut backlash eliminator
Self-lubricating motor shaft
Meehanite castings
precision ground gibes
Roller bearing support at bottom of motor shaft
Superior knuckle head design to prevent vertical head from slipping

One Shot Lube System, Hard Chromed Ways, Front and Rear Rubber Way Covers, Tool Box with Tools and 220/440 V Wired

Catalog

Owners/User Manual

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 8/4 A

Country of Origin: TW

Cross Travel: 12 in

Dimensions: 7 x 6.6 x 6.7 ft

Horsepower: 3 hp

Knee Travel: 16 in

Longitudinal Travel: 30 in

Manufacturer Name: Sharp-Industries, Inc

Number of Spindle Speeds: 3

Number of T-Slots: 3

Quill Diameter: 3-3/8 in

Ram Travel: 12 in

Spindle Speed: 60 to 4500 rpm

Spindle Taper: R-8

Spindle to Table Distance: 2.125 to 18 in

Table Size: 9 in L x 42 in W

Tilting Angle: 45 deg

T-Slot Size: 5/8 in W x 2-1/2 in Pitch

Type: Knee Type Manual Vertical

Voltage Rating: 220/440 V

One Shot Lube System, Hard Chromed Ways, Front and Rear Rubber Way Covers, Tool Box with Tools and 220/440 V Wired

Chromed ways
Double nut backlash eliminator
Self-lubricating motor shaft
Meehanite castings
precision ground gibes
Roller bearing support at bottom of motor shaft
Superior knuckle head design to prevent vertical head from slipping

One Shot Lube System, Hard Chromed Ways, Front and Rear Rubber Way Covers, Tool Box with Tools and 220/440 V Wired
