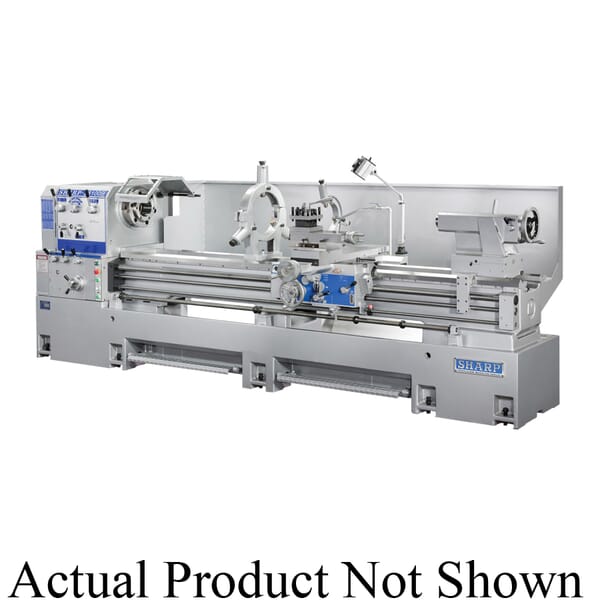

Sharp 30120V B Series Manual Big Bore Heavy Duty Precision Lathe, 30 in Swing Over Bed, 21 in Swing Over Cross Slide, 120 in Distance Between Centers, 4-1/2 in Bore Spindle, 15 hp

ManufacturerSharp

Part #848670028

MFG #30120B

Sharp Heavy Duty Precision Lathe, Manual Big Bore, Series: B Series, 30 in Swing Over Bed, 21 in Swing Over Cross Slide, 120 in Distance Between Centers, 15-3/4 in Bed Width, MT #5 Tailstock Taper, 4-1/2 in Bore Spindle, D1-11 Camlock Spindle Nose, 10 to 1000 rpm Spindle Speed, 12 Spindle Speed, 14-3/4 in Cross Travel, 6-1/2 in Tailstock Spindle Travel, 8 in Compound Travel, 0.0026 to 0.035 in Maximum Cross Feed Rate per Revolution, 0.0022 to 0.032 in Maximum Longitudinal Feed Rate per Revolution, 15 hp, 230/460 V, 45/22.5 A, 15.58 x 3.75 x 6.41 ft Dimensions

$58,700.00

/ EA

Contact Us for Ordering and Shipping information. 800-555-1212

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 45/22.5 A

Bed Width: 15-3/4 in

Compound Travel: 8 in

Country of Origin: TW

Cross Travel: 14-3/4 in

Dimensions: 15.58 x 3.75 x 6.41 ft

Distance Between Centers: 120 in

Horsepower: 15 hp

Manufacturer Name: Sharp-Industries, Inc

Maximum Cross Feed Rate per Revolution: 0.0026 to 0.035 in

Maximum Longitudinal Feed Rate per Revolution: 0.0022 to 0.032 in

Number of Spindle Speeds: 12

Series: B Series

Spindle Nose: D1-11 Camlock

Spindle Size: 4-1/2 in Bore

Spindle Speed: 10 to 1000 rpm

Swing Over Bed: 30 in

Swing Over Cross Slide: 21 in

Tailstock Spindle Travel: 6-1/2 in

Tailstock Taper Size: MT #5

Type: Manual Big Bore

Voltage Rating: 230/460 V

4-Jaw 16 in Chuck, 20 in Face Plate, 4 to 11-1/2 in Steady Rest, 4-Way Tool Post, Coolant System, Halogen Light, 4-Way Carriage Stop, Splash Guard, 16 in Chuck Guard, Tailstock, Follow Rest, Tool Kit, Rapid Transverse On Longitudinal and 220/440 V Wired

Clutch type geared head
Wide thread range (1/4 to 84 TPI)

4-Jaw 16 in Chuck, 20 in Face Plate, 4 to 11-1/2 in Steady Rest, 4-Way Tool Post, Coolant System, Halogen Light, 4-Way Carriage Stop, Splash Guard, 16 in Chuck Guard, Tailstock, Follow Rest, Tool Kit, Rapid Transverse On Longitudinal and 220/440 V Wired

Catalog

Video Link

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 45/22.5 A

Bed Width: 15-3/4 in

Compound Travel: 8 in

Country of Origin: TW

Cross Travel: 14-3/4 in

Dimensions: 15.58 x 3.75 x 6.41 ft

Distance Between Centers: 120 in

Horsepower: 15 hp

Manufacturer Name: Sharp-Industries, Inc

Maximum Cross Feed Rate per Revolution: 0.0026 to 0.035 in

Maximum Longitudinal Feed Rate per Revolution: 0.0022 to 0.032 in

Number of Spindle Speeds: 12

Series: B Series

Spindle Nose: D1-11 Camlock

Spindle Size: 4-1/2 in Bore

Spindle Speed: 10 to 1000 rpm

Swing Over Bed: 30 in

Swing Over Cross Slide: 21 in

Tailstock Spindle Travel: 6-1/2 in

Tailstock Taper Size: MT #5

Type: Manual Big Bore

Voltage Rating: 230/460 V

4-Jaw 16 in Chuck, 20 in Face Plate, 4 to 11-1/2 in Steady Rest, 4-Way Tool Post, Coolant System, Halogen Light, 4-Way Carriage Stop, Splash Guard, 16 in Chuck Guard, Tailstock, Follow Rest, Tool Kit, Rapid Transverse On Longitudinal and 220/440 V Wired

Clutch type geared head
Wide thread range (1/4 to 84 TPI)

4-Jaw 16 in Chuck, 20 in Face Plate, 4 to 11-1/2 in Steady Rest, 4-Way Tool Post, Coolant System, Halogen Light, 4-Way Carriage Stop, Splash Guard, 16 in Chuck Guard, Tailstock, Follow Rest, Tool Kit, Rapid Transverse On Longitudinal and 220/440 V Wired

Catalog

Video Link
