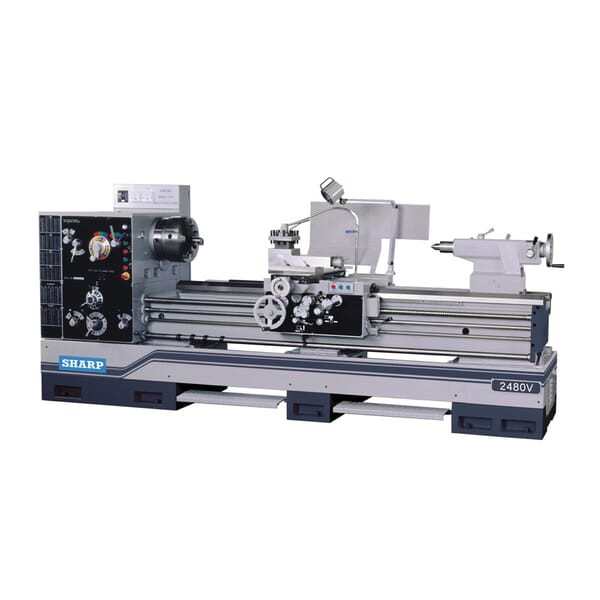

Sharp 2480V V Series Big Bore Manual Heavy Duty Lathe, 24 in Swing Over Bed, 14-3/4 in Swing Over Cross Slide, 80 in Distance Between Centers, 4.12 in Bore Spindle, 15 hp

ManufacturerSharp

Part #848670023

MFG #2480V

Sharp Heavy Duty Lathe, Big Bore Manual, Series: V Series, 24 in Swing Over Bed, 14-3/4 in Swing Over Cross Slide, 80 in Distance Between Centers, 19 in Bed Width, MT #5 Tailstock Taper, 4.12 in Bore Spindle, D1-11 Camlock Spindle Nose, 10 to 1200 rpm Spindle Speed, 18 Spindle Speed, 14-3/4 in Cross Travel, 7-1/2 in Tailstock Spindle Travel, 9 in Compound Travel, 0.0006 to 0.16 in Maximum Cross Feed Rate per Revolution, 0.0015 to 0.2 in Maximum Longitudinal Feed Rate per Revolution, 15 hp, 220/440/575 V, 40/20/15 A, 11.6 ft L x 4.9 ft H Dimensions

$75,195.00

/ EA

Contact Us for Ordering and Shipping information. 800-555-1212

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 40/20/15 A

Bed Width: 19 in

Compound Travel: 9 in

Country of Origin: TW

Cross Travel: 14-3/4 in

Dimensions: 11.6 ft L x 4.9 ft H

Distance Between Centers: 80 in

Horsepower: 15 hp

Manufacturer Name: Sharp-Industries, Inc

Maximum Cross Feed Rate per Revolution: 0.0006 to 0.16 in

Maximum Longitudinal Feed Rate per Revolution: 0.0015 to 0.2 in

Number of Spindle Speeds: 18

Series: V Series

Spindle Nose: D1-11 Camlock

Spindle Size: 4.12 in Bore

Spindle Speed: 10 to 1200 rpm

Swing Over Bed: 24 in

Swing Over Cross Slide: 14-3/4 in

Tailstock Spindle Travel: 7-1/2 in

Tailstock Taper Size: MT #5

Type: Big Bore Manual

Voltage Rating: 220/440/575 V

Clutch head stock with magnetic brake
Universal gear box with multiple thread dial
Carriage four way rapid feed
Hardened and ground bed ways and bed guide 65 deg
Automatic lubrication system
Chrome-moly headstock gears

Steady Rest with Roller Jaws, 20 in Face Plate, Coolant System, Longitudinal Carriage Stop, Halogen Work Light, Tailstock with 2-Speeds on Quill and 220/440 V Wired

Catalog

Owners/User Manual

Manufacturer Name: Sharp-Industries, Inc

Amperage Rating: 40/20/15 A

Bed Width: 19 in

Compound Travel: 9 in

Country of Origin: TW

Cross Travel: 14-3/4 in

Dimensions: 11.6 ft L x 4.9 ft H

Distance Between Centers: 80 in

Horsepower: 15 hp

Manufacturer Name: Sharp-Industries, Inc

Maximum Cross Feed Rate per Revolution: 0.0006 to 0.16 in

Maximum Longitudinal Feed Rate per Revolution: 0.0015 to 0.2 in

Number of Spindle Speeds: 18

Series: V Series

Spindle Nose: D1-11 Camlock

Spindle Size: 4.12 in Bore

Spindle Speed: 10 to 1200 rpm

Swing Over Bed: 24 in

Swing Over Cross Slide: 14-3/4 in

Tailstock Spindle Travel: 7-1/2 in

Tailstock Taper Size: MT #5

Type: Big Bore Manual

Voltage Rating: 220/440/575 V

Clutch head stock with magnetic brake
Universal gear box with multiple thread dial
Carriage four way rapid feed
Hardened and ground bed ways and bed guide 65 deg
Automatic lubrication system
Chrome-moly headstock gears

Steady Rest with Roller Jaws, 20 in Face Plate, Coolant System, Longitudinal Carriage Stop, Halogen Work Light, Tailstock with 2-Speeds on Quill and 220/440 V Wired

Catalog

Owners/User Manual
