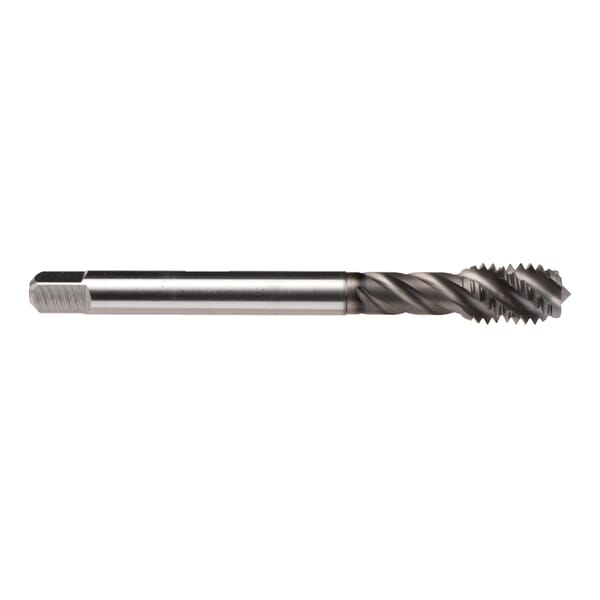

Emuge CU50C344.5016 Enorm 2-VA CU50C344 Form C Fast Reduced Shank Spiral Flute Tap, Right Hand Cutting, 3/4-10 Thread, H11 Thread Limit, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, GLT-1 Coated, HSS-E

ManufacturerEmuge

Part #826514249

MFG #CU50C344.5016

Emuge Spiral Flute Tap, Form C Fast Reduced Shank, Series: Enorm 2-VA CU50C344, Measurement System: Imperial, UNC, 3/4-10, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E, GLT-1 Coated, Class of Fit: Oversize, Right Hand Cutting, 1.181 in Thread Length, 4.921 in Overall Length, 0.59 in Shank Dia, Right Hand Flute Direction, H11 Thread Limit, Cast Iron, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

$199.44

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: Oversize

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-1 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Stainless Steel and Steel

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 4.921 in

Series: Enorm 2-VA CU50C344

Shank Diameter: 0.59 in

Thread Length: 1.181 in

Thread Limit: H11

Thread Size: 3/4-10

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Fast Reduced Shank

InnoForm VA roll form taps are specifically designed for stainless and alloyed steel applications
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
The fast spiral flute (35 deg) provides good chip removal from blind holes
Oversized thread tolerance to accommodate post plating operations in many industries
Taps are manufactured with an oversize tolerance of GH11 +0.005 in
NE2 surface treatment or GLT-1 coating for maximum performance in demanding materials
DIN/ANSI dimensions with ANSI shanks and extended DIN overall lengths
New improved version of old tool AU503244.5016

ASME B1.1|ANSI Specified|DIN 371, 376

Emuge Spiral Flute Tap, Form C Fast Reduced Shank, Series: Enorm 2-VA CU50C344, Measurement System: Imperial, UNC, 3/4-10, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E, GLT-1 Coated, Class of Fit: Oversize, Right Hand Cutting, 1.181 in Thread Length, 4.921 in Overall Length, 0.59 in Shank Dia, Right Hand Flute Direction, H11 Thread Limit, Cast Iron, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: Oversize

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-1 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Cast Iron, Stainless Steel and Steel

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 4.921 in

Series: Enorm 2-VA CU50C344

Shank Diameter: 0.59 in

Thread Length: 1.181 in

Thread Limit: H11

Thread Size: 3/4-10

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Fast Reduced Shank

InnoForm VA roll form taps are specifically designed for stainless and alloyed steel applications
GLT-1 maximizes tool life and performance with a combination of a hard surface and an anti-friction layer
The fast spiral flute (35 deg) provides good chip removal from blind holes
Oversized thread tolerance to accommodate post plating operations in many industries
Taps are manufactured with an oversize tolerance of GH11 +0.005 in
NE2 surface treatment or GLT-1 coating for maximum performance in demanding materials
DIN/ANSI dimensions with ANSI shanks and extended DIN overall lengths
New improved version of old tool AU503244.5016

ASME B1.1|ANSI Specified|DIN 371, 376

Emuge Spiral Flute Tap, Form C Fast Reduced Shank, Series: Enorm 2-VA CU50C344, Measurement System: Imperial, UNC, 3/4-10, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E, GLT-1 Coated, Class of Fit: Oversize, Right Hand Cutting, 1.181 in Thread Length, 4.921 in Overall Length, 0.59 in Shank Dia, Right Hand Flute Direction, H11 Thread Limit, Cast Iron, Stainless Steel and Steel Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing
