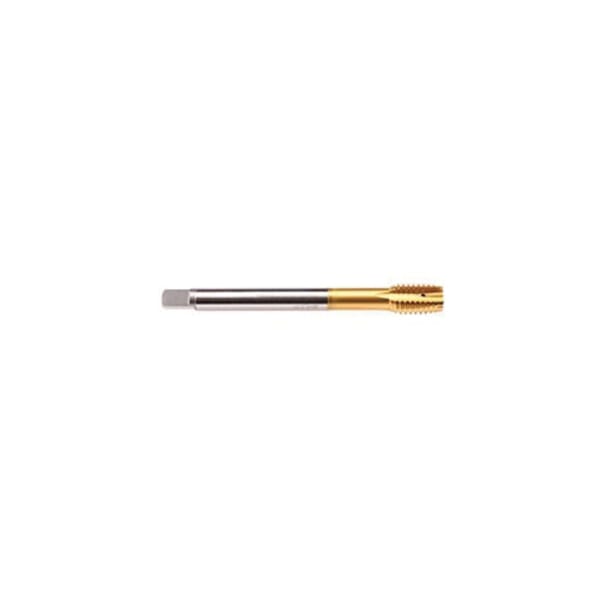

Emuge CW208F01.5016 Rekord 2B-Z-SPEED-IKZN-PM CW208F01 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, 3/4-10 Thread, 4-5 Plug Chamfer, 4 Flutes, TiN 70 Coated, HSS-E-PM

ManufacturerEmuge

Part #826514151

MFG #CW208F01.5016

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-Z-SPEED-IKZN-PM CW208F01, Measurement System: Imperial, UNC Thread Standard, 3/4-10 Thread, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, TiN 70 Coated, Class of Fit: 2BX, Right Hand Cutting Direction, 0.984 in Thread Length, 4.921 in Overall Length, 0.59 in Shank Diameter, Aluminum Alloys, Cast Iron and Steel Material Application, Yes Through Coolant

$278.53

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 70 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Aluminum Alloys, Cast Iron and Steel

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 4.921 in

Series: Rekord 2B-Z-SPEED-IKZN-PM CW208F01

Shank Diameter: 0.59 in

Thread Length: 0.984 in

Thread Size: 3/4-10

Thread Standard: UNC

Through Coolant (Yes/No): Yes

Type: Form B Reduced Shank

Taps with the SPEED designation are designed to run faster than conventional taps
Spiral point design to push the chips forward
Z geometry is well suited to long chipping materials including stainless and alloyed steel
TiN coating provides additional wear-resistance and reduces cold welding
Replacement part for old tool CW203701.5016
IKZN - radial coolant hole design

ASME B1.1|ANSI Specified|DIN 371, 376

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-Z-SPEED-IKZN-PM CW208F01, Measurement System: Imperial, UNC Thread Standard, 3/4-10 Thread, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, TiN 70 Coated, Class of Fit: 2BX, Right Hand Cutting Direction, 0.984 in Thread Length, 4.921 in Overall Length, 0.59 in Shank Diameter, Aluminum Alloys, Cast Iron and Steel Material Application, Yes Through Coolant
