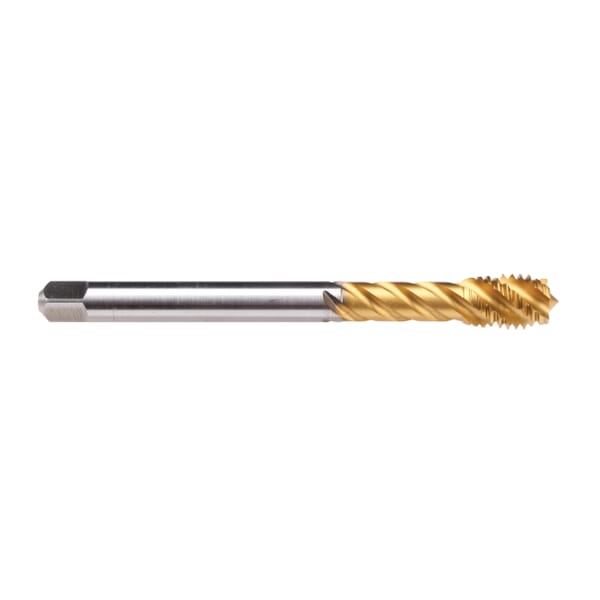

Emuge C3600F01.0331 Enorm 2-Z-SPEED X-PM C3600F01 Form C Fast Reduced Shank Spiral Flute Tap, Right Hand Cutting, M14x1.5 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 5 Flutes, TiN 60 Coated, HSS-E-PM

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge C3600F01.0331 Enorm 2-Z-SPEED X-PM C3600F01 Form C Fast Reduced Shank Spiral Flute Tap, Right Hand Cutting, M14x1.5 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 5 Flutes, TiN 60 Coated, HSS-E-PM

ManufacturerEmuge

Part #826514128

MFG #C3600F01.0331

Emuge Spiral Flute Tap, Form C Fast Reduced Shank, Series: Enorm 2-Z-SPEED X-PM C3600F01, Measurement System: Metric, MF, M14x1.5, 2-3 Modified Bottoming Plug Chamfer, 5 Flutes, HSS-E-PM, TiN 60 Coated, Class of Fit: 6HX, Right Hand Cutting, 15 mm Thread Length, 100 mm Overall Length, 11 mm Shank Dia, Right Hand Flute Direction, Steel Material Application, No Through Coolant (Yes/No)

$170.61

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 60 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Steel

Measurement System: Metric

Number of Flutes: 5

Overall Length: 100 mm

Series: Enorm 2-Z-SPEED X-PM C3600F01

Shank Diameter: 11 mm

Thread Length: 15 mm

Thread Size: M14x1.5

Thread Standard: MF

Through Coolant (Yes/No): No

Type: Form C Fast Reduced Shank

Taps with the SPEED designation are designed to run faster than conventional taps, Z geometry is well suited to long chipping materials including stainless and alloyed steel
TiN coating provides additional wear-resistance and reduces cold welding
45 deg spiral flute design
DIN/DIN standard dimensions for overall length and shank size
Replacement part for old tool C3503700.0331

DIN 13|ISO Certified

Emuge Spiral Flute Tap, Form C Fast Reduced Shank, Series: Enorm 2-Z-SPEED X-PM C3600F01, Measurement System: Metric, MF, M14x1.5, 2-3 Modified Bottoming Plug Chamfer, 5 Flutes, HSS-E-PM, TiN 60 Coated, Class of Fit: 6HX, Right Hand Cutting, 15 mm Thread Length, 100 mm Overall Length, 11 mm Shank Dia, Right Hand Flute Direction, Steel Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 60 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Steel

Measurement System: Metric

Number of Flutes: 5

Overall Length: 100 mm

Series: Enorm 2-Z-SPEED X-PM C3600F01

Shank Diameter: 11 mm

Thread Length: 15 mm

Thread Size: M14x1.5

Thread Standard: MF

Through Coolant (Yes/No): No

Type: Form C Fast Reduced Shank

Taps with the SPEED designation are designed to run faster than conventional taps, Z geometry is well suited to long chipping materials including stainless and alloyed steel
TiN coating provides additional wear-resistance and reduces cold welding
45 deg spiral flute design
DIN/DIN standard dimensions for overall length and shank size
Replacement part for old tool C3503700.0331

DIN 13|ISO Certified

Emuge Spiral Flute Tap, Form C Fast Reduced Shank, Series: Enorm 2-Z-SPEED X-PM C3600F01, Measurement System: Metric, MF, M14x1.5, 2-3 Modified Bottoming Plug Chamfer, 5 Flutes, HSS-E-PM, TiN 60 Coated, Class of Fit: 6HX, Right Hand Cutting, 15 mm Thread Length, 100 mm Overall Length, 11 mm Shank Dia, Right Hand Flute Direction, Steel Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing
