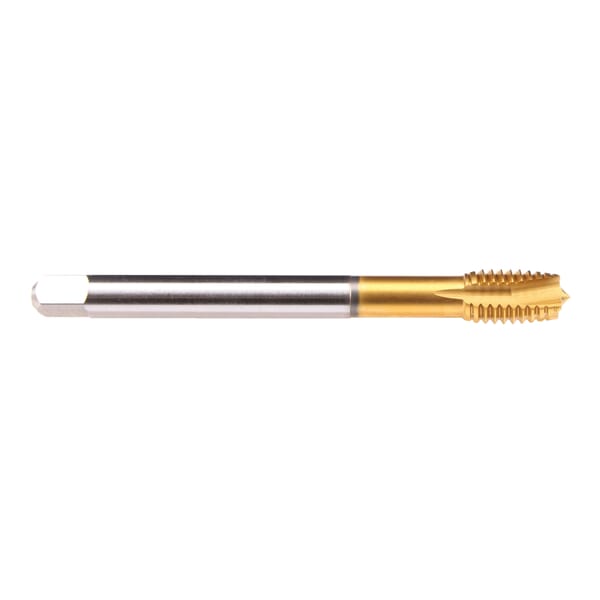

Emuge C3208F01.0303 Rekord 2B-Z-SPEED-PM C3208F01 Form B Reduced Shank Spiral Point Tap, Right Hand Cutting, M12x1.5 Thread, 4-5 Plug Chamfer, 4 Flutes, TiN 70 Coated, HSS-E-PM

ManufacturerEmuge

Part #826514110

MFG #C3208F01.0303

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-Z-SPEED-PM C3208F01, Measurement System: Metric, MF, M12x1.5, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, TiN 70 Coated, Class of Fit: 6HX, Right Hand Cutting, 15 mm Thread Length, 100 mm Overall Length, 9 mm Shank Dia, Aluminum Alloys, Cast Iron and Steel Material Application, No Through Coolant (Yes/No)

$125.14

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 70 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Aluminum Alloys, Cast Iron and Steel

Measurement System: Metric

Number of Flutes: 4

Overall Length: 100 mm

Series: Rekord 2B-Z-SPEED-PM C3208F01

Shank Diameter: 9 mm

Thread Length: 15 mm

Thread Size: M12x1.5

Thread Standard: MF

Through Coolant (Yes/No): No

Type: Form B Reduced Shank

Taps with the SPEED designation are designed to run faster than conventional taps
Spiral point design to push the chips forward
Z geometry is well suited to long chipping materials including stainless and alloyed steel
TiN coating provides additional wear-resistance and reduces cold welding
Straight flute design
Replacement part for old tool C3203701.0303
DIN/DIN standard dimensions for overall length and shank size

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-Z-SPEED-PM C3208F01, Measurement System: Metric, MF, M12x1.5, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, TiN 70 Coated, Class of Fit: 6HX, Right Hand Cutting, 15 mm Thread Length, 100 mm Overall Length, 9 mm Shank Dia, Aluminum Alloys, Cast Iron and Steel Material Application, No Through Coolant (Yes/No)

DIN 13|ISO Certified

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 4-5 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 70 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Aluminum Alloys, Cast Iron and Steel

Measurement System: Metric

Number of Flutes: 4

Overall Length: 100 mm

Series: Rekord 2B-Z-SPEED-PM C3208F01

Shank Diameter: 9 mm

Thread Length: 15 mm

Thread Size: M12x1.5

Thread Standard: MF

Through Coolant (Yes/No): No

Type: Form B Reduced Shank

Taps with the SPEED designation are designed to run faster than conventional taps
Spiral point design to push the chips forward
Z geometry is well suited to long chipping materials including stainless and alloyed steel
TiN coating provides additional wear-resistance and reduces cold welding
Straight flute design
Replacement part for old tool C3203701.0303
DIN/DIN standard dimensions for overall length and shank size

Emuge Spiral Point Tap, Form B Reduced Shank, Series: Rekord 2B-Z-SPEED-PM C3208F01, Measurement System: Metric, MF, M12x1.5, 4-5 Plug Chamfer, 4 Flutes, HSS-E-PM, TiN 70 Coated, Class of Fit: 6HX, Right Hand Cutting, 15 mm Thread Length, 100 mm Overall Length, 9 mm Shank Dia, Aluminum Alloys, Cast Iron and Steel Material Application, No Through Coolant (Yes/No)

DIN 13|ISO Certified

Catalog

Full Engineering Drawing
