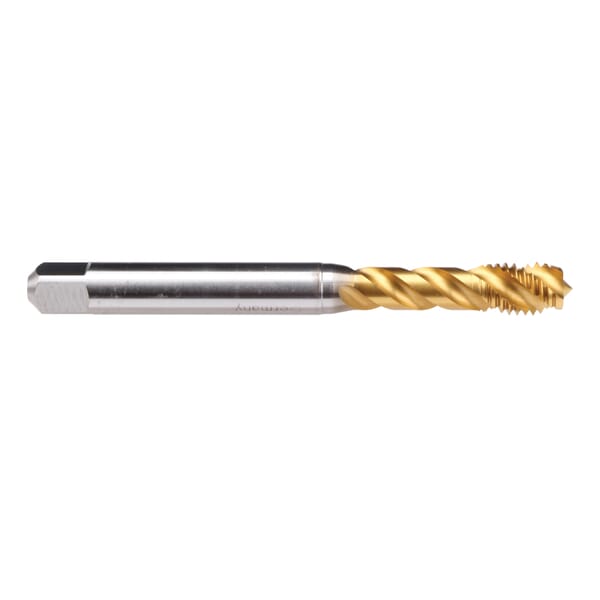

Emuge B3600F01.0060 Enorm 1-Z-SPEED X-PM B3600F01 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M6x1 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, TiN 60 Coated, HSS-E-PM

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge B3600F01.0060 Enorm 1-Z-SPEED X-PM B3600F01 Form C Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, M6x1 Thread, 2-3 Modified Bottoming Plug Chamfer, Right Hand Flute Direction, 3 Flutes, TiN 60 Coated, HSS-E-PM

ManufacturerEmuge

Part #826514081

MFG #B3600F01.0060

Emuge Spiral Flute Tap, Form C Fast Reinforced Shank, Series: A3899XPL, Measurement System: Metric, MC, M6x1, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E-PM, TiN 60 Coated, Class of Fit: 6HX, Right Hand Cutting, 10 mm Thread Length, 80 mm Overall Length, 6 mm Shank Dia, Right Hand Flute Direction, Steel Material Application, No Through Coolant (Yes/No)

$80.72

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 60 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Steel

Measurement System: Metric

Number of Flutes: 3

Overall Length: 80 mm

Series: Enorm 1-Z-SPEED X-PM B3600F01

Shank Diameter: 6 mm

Thread Length: 10 mm

Thread Size: M6x1

Thread Standard: MC

Through Coolant (Yes/No): No

Type: Form C Fast Reinforced Shank

Taps with the SPEED designation are designed to run faster than conventional taps, Z geometry is well suited to long chipping materials including stainless and alloyed steel
TiN coating provides additional wear-resistance and reduces cold welding
45 deg spiral flute design
DIN/DIN standard dimensions for overall length and shank size
Replacement part for old tool B3503700.0060

DIN 13|ISO Certified

Emuge Spiral Flute Tap, Form C Fast Reinforced Shank, Series: A3899XPL, Measurement System: Metric, MC, M6x1, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E-PM, TiN 60 Coated, Class of Fit: 6HX, Right Hand Cutting, 10 mm Thread Length, 80 mm Overall Length, 6 mm Shank Dia, Right Hand Flute Direction, Steel Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Modified Bottoming Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 60 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Material Application: Steel

Measurement System: Metric

Number of Flutes: 3

Overall Length: 80 mm

Series: Enorm 1-Z-SPEED X-PM B3600F01

Shank Diameter: 6 mm

Thread Length: 10 mm

Thread Size: M6x1

Thread Standard: MC

Through Coolant (Yes/No): No

Type: Form C Fast Reinforced Shank

Taps with the SPEED designation are designed to run faster than conventional taps, Z geometry is well suited to long chipping materials including stainless and alloyed steel
TiN coating provides additional wear-resistance and reduces cold welding
45 deg spiral flute design
DIN/DIN standard dimensions for overall length and shank size
Replacement part for old tool B3503700.0060

DIN 13|ISO Certified

Emuge Spiral Flute Tap, Form C Fast Reinforced Shank, Series: A3899XPL, Measurement System: Metric, MC, M6x1, 2-3 Modified Bottoming Plug Chamfer, 3 Flutes, HSS-E-PM, TiN 60 Coated, Class of Fit: 6HX, Right Hand Cutting, 10 mm Thread Length, 80 mm Overall Length, 6 mm Shank Dia, Right Hand Flute Direction, Steel Material Application, No Through Coolant (Yes/No)

Catalog

Full Engineering Drawing
