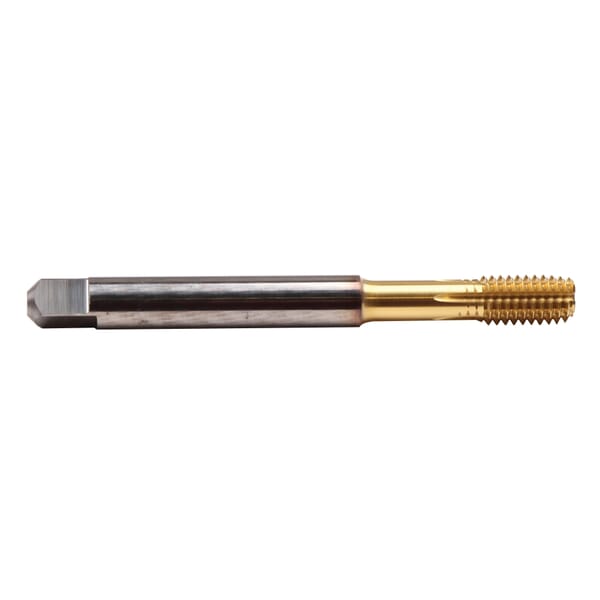

Emuge B531Z800.0050 VHM InnoForm 1-Z/E-SN-IKZ B531Z800 Form E Reinforced Shank Roll Form Tap With Axial Coolant Through, M5x0.8 Thread

ManufacturerEmuge

Part #826514052

MFG #B531Z800.0050

Emuge Roll Form Tap, Form E Reinforced Shank, Series: VHM InnoForm 1-Z/E-SN-IKZ B531Z800, Measurement System: Metric, M5x0.8, MC, 1.5-2 Plug Chamfer, 8 mm Thread Length, 70 mm Overall Length, Right Hand Cutting, Class of Fit: 6HX, 6 mm Shank Dia, 4.9 mm Square Size, Solid Carbide, TiN 80 Coated

$311.18

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 1.5-2 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 80 Coated

Manufacturer Name: Emuge-Franken

Material: Solid Carbide

Measurement System: Metric

Overall Length: 70 mm

Series: VHM InnoForm 1-Z/E-SN-IKZ B531Z800

Shank Diameter: 6 mm

Square Size: 4.9 mm

Thread Length: 8 mm

Thread Size: M5x0.8

Thread Standard: MC

Type: Form E Reinforced Shank

InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
InnoForm taps offer high performance roll form taps
TiN coating provides additional wear-resistance and reduces cold welding
Lubrication grooves
Z designates a tap design for CNC controlled machines with synchronous feed control
DIN/ANSI standard dimensions for overall length and shank size
Replacement part for old tool B531P900.0050

DIN 13|ISO Certified

Emuge Roll Form Tap, Form E Reinforced Shank, Series: VHM InnoForm 1-Z/E-SN-IKZ B531Z800, Measurement System: Metric, M5x0.8, MC, 1.5-2 Plug Chamfer, 8 mm Thread Length, 70 mm Overall Length, Right Hand Cutting, Class of Fit: 6HX, 6 mm Shank Dia, 4.9 mm Square Size, Solid Carbide, TiN 80 Coated
