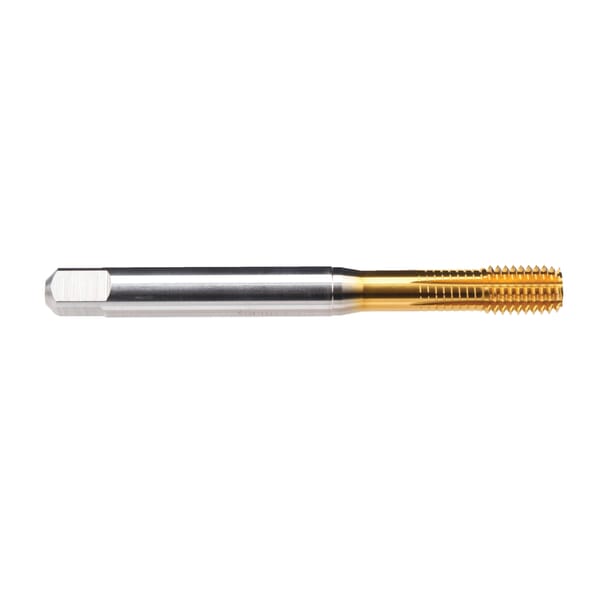

Emuge B5296A00.0080 InnoForm 1-VA/E-SN-PM B5296A00 Form E Reinforced Shank Roll Form Tap, M8x1.25 Thread

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge B5296A00.0080 InnoForm 1-VA/E-SN-PM B5296A00 Form E Reinforced Shank Roll Form Tap, M8x1.25 Thread

ManufacturerEmuge

Part #826513851

MFG #B5296A00.0080

Emuge Roll Form Tap, Form E Reinforced Shank, Series: InnoForm 1-VA/E-SN-PM B5296A00, Measurement System: Metric, M8x1.25 Thread, MC Thread Standard, 1.5-2 Plug Chamfer, 20 mm Thread Length, 90 mm Overall Length, Right Hand Cutting Direction, Class of Fit: 6HX, 8 mm Shank Diameter, 6.2 mm Square, HSS-E-PM, TiN T26 Coated

$147.06

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 1.5-2 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN T26 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Measurement System: Metric

Overall Length: 90 mm

Series: InnoForm 1-VA/E-SN-PM B5296A00

Shank Diameter: 8 mm

Square Size: 6.2 mm

Thread Length: 20 mm

Thread Size: M8x1.25

Thread Standard: MC

Type: Form E Reinforced Shank

InnoForm VA roll form taps are specifically designed for stainless and alloyed steel applications
InnoForm taps offer high performance roll form taps
TiN coating provides additional wear-resistance and reduces cold welding
This high performance design provides maximum tool life and thread quality with specific flute forms and PVD coating combinations
Lubrication grooves
DIN/DIN standard dimensions for overall length and shank size
Without coolant through
Replacement part for old tool B519N000.0080

Emuge Roll Form Tap, Form E Reinforced Shank, Series: InnoForm 1-VA/E-SN-PM B5296A00, Measurement System: Metric, M8x1.25 Thread, MC Thread Standard, 1.5-2 Plug Chamfer, 20 mm Thread Length, 90 mm Overall Length, Right Hand Cutting Direction, Class of Fit: 6HX, 8 mm Shank Diameter, 6.2 mm Square, HSS-E-PM, TiN T26 Coated

DIN 13|ISO Certified

Catalog

Full Engineering Drawing

Manufacturer Name: Emuge-Franken

Chamfer Type: 1.5-2 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN T26 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Measurement System: Metric

Overall Length: 90 mm

Series: InnoForm 1-VA/E-SN-PM B5296A00

Shank Diameter: 8 mm

Square Size: 6.2 mm

Thread Length: 20 mm

Thread Size: M8x1.25

Thread Standard: MC

Type: Form E Reinforced Shank

InnoForm VA roll form taps are specifically designed for stainless and alloyed steel applications
InnoForm taps offer high performance roll form taps
TiN coating provides additional wear-resistance and reduces cold welding
This high performance design provides maximum tool life and thread quality with specific flute forms and PVD coating combinations
Lubrication grooves
DIN/DIN standard dimensions for overall length and shank size
Without coolant through
Replacement part for old tool B519N000.0080

Emuge Roll Form Tap, Form E Reinforced Shank, Series: InnoForm 1-VA/E-SN-PM B5296A00, Measurement System: Metric, M8x1.25 Thread, MC Thread Standard, 1.5-2 Plug Chamfer, 20 mm Thread Length, 90 mm Overall Length, Right Hand Cutting Direction, Class of Fit: 6HX, 8 mm Shank Diameter, 6.2 mm Square, HSS-E-PM, TiN T26 Coated

DIN 13|ISO Certified

Catalog

Full Engineering Drawing
