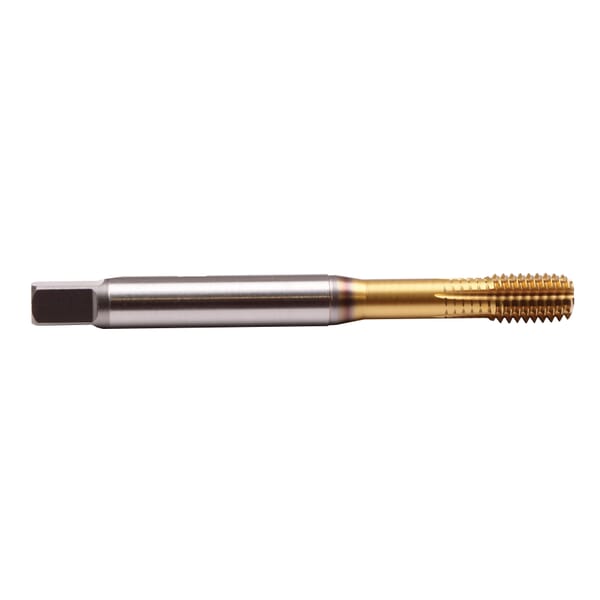

Emuge B523Z700.0050 InnoForm 1-Z-SN-IKZ-PM B523Z700 Form C Reinforced Shank Roll Form Tap With Axial Coolant Through, M5x0.8 Thread

ManufacturerEmuge

Part #826513845

MFG #B523Z700.0050

Emuge Roll Form Tap, Form C Reinforced Shank, Series: InnoForm 1-Z-SN-IKZ-PM B523Z700, Measurement System: Metric, M5x0.8 Thread, MC Thread Standard, 2-3 Plug Chamfer, 8 mm Thread Length, 70 mm Overall Length, Right Hand Cutting Direction, Class of Fit: 6HX, 6 mm Shank Diameter, 4.9 mm Square, HSS-E-PM, TiN 80 Coated

$122.40

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: 2-3 Plug

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN 80 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E-PM

Measurement System: Metric

Overall Length: 70 mm

Series: InnoForm 1-Z-SN-IKZ-PM B523Z700

Shank Diameter: 6 mm

Square Size: 4.9 mm

Thread Length: 8 mm

Thread Size: M5x0.8

Thread Standard: MC

Type: Form C Reinforced Shank

InnoForm Z roll form taps are specifically designed for stainless steel and other low tensile strength materials
InnoForm taps offer high performance roll form taps
TiN coating provides additional wear-resistance and reduces cold welding
Lubrication grooves
Z designates a tap design for CNC controlled machines with synchronous feed control
DIN/DIN standard dimensions for overall length and shank size
Replacement part for old tool B523A800.0050

Emuge Roll Form Tap, Form C Reinforced Shank, Series: InnoForm 1-Z-SN-IKZ-PM B523Z700, Measurement System: Metric, M5x0.8 Thread, MC Thread Standard, 2-3 Plug Chamfer, 8 mm Thread Length, 70 mm Overall Length, Right Hand Cutting Direction, Class of Fit: 6HX, 6 mm Shank Diameter, 4.9 mm Square, HSS-E-PM, TiN 80 Coated

DIN 13|ISO Certified
