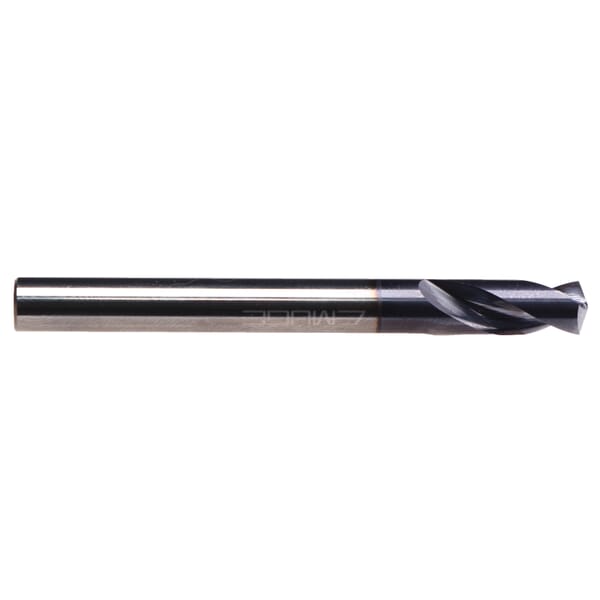

Emuge EFUT3300.0500 High Precision Standard Length NC Spot Drill, 5 mm Dia, 2-1/4 in OAL, Solid Carbide, TiAlN Coated

ManufacturerEmuge

Part #826513202

MFG #EFUT3300.0500

Emuge NC Spot Drill, High Precision Standard Length, Series: EFUT3300, 5 mm Dia, 2-1/4 in Overall Length, 3/4 in Cutting Depth, 2 Flutes, 3/4 in Flute Length, 5 mm Shank, Cylindrical Shank, 142 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, TiAlN Coated, Applicable Materials: Alloy Steel, Cast Iron, Non-Ferrous Metals, Plastics, Steel and other Tough to Machine Materials

$37.12

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Applicable Materials: Alloy Steel, Cast Iron, Non-Ferrous Metals, Plastics, Steel and other Tough to Machine Materials

Country of Origin: DE, US

Cutting Depth: 3/4 in

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Diameter: 5 mm

Finish: TiAlN Coated

Flute Length: 3/4 in

Manufacturer Name: Emuge-Franken

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 2-1/4 in

Point Angle: 142 deg

Series: EFUT3300

Shank Size: 5 mm

Shank Type: Cylindrical

Type: High Precision Standard Length

Premium sub-micrograin carbide
TiAlN coated for additional heat and wear resistance
142 deg point angle with web thinning
H6 tolerance on shank diameter

Emuge NC Spot Drill, High Precision Standard Length, Series: EFUT3300, 5 mm Dia, 2-1/4 in Overall Length, 3/4 in Cutting Depth, 2 Flutes, 3/4 in Flute Length, 5 mm Shank, Cylindrical Shank, 142 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, TiAlN Coated, Applicable Materials: Alloy Steel, Cast Iron, Non-Ferrous Metals, Plastics, Steel and other Tough to Machine Materials

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
