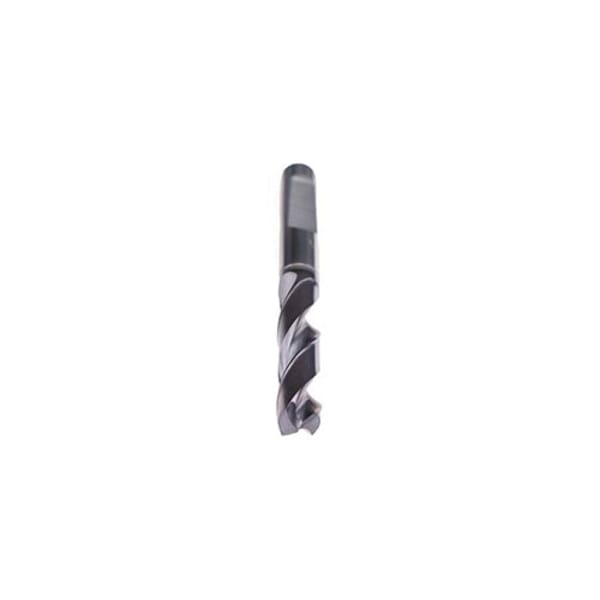

Emuge TA403324.0935 EF Series TA403324 High Performance Stub Length Drill, 9.35 mm Drill - Metric, 0.3681 in Drill - Decimal Inch, Solid Carbide, TiAlN-TA14 Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Emuge-Franken

Emuge TA403324.0935 EF Series TA403324 High Performance Stub Length Drill, 9.35 mm Drill - Metric, 0.3681 in Drill - Decimal Inch, Solid Carbide, TiAlN-TA14 Coated

ManufacturerEmuge

Part #826512345

MFG #TA403324.0935

Emuge Stub Length Drill, High Performance, Series: EF Series TA403324, Metric/Imperial, 9.35 mm Drill - Metric, 0.3681 in Drill - Decimal Inch, 89 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 47 mm Flute Length, 10 mm Shank, Whistle Notch Shank, 140 deg Point, 4-Facet/Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, TiAlN-TA14 Coated, Applicable Materials: Steel, Stainless Steel, Cast Materials, Non-Ferrous Metals, Special Materials and Hard Materials

$131.86

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Applicable Materials: Steel, Stainless Steel, Cast Materials, Non-Ferrous Metals, Special Materials and Hard Materials

Country of Origin: DE

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.3681 in

Drill Size - Metric: 9.35 mm

Finish: TiAlN-TA14 Coated

Flute Length: 47 mm

Flute Type: Spiral

Manufacturer Name: Emuge-Franken

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 89 mm

Point Angle: 140 deg

Point Type: 4-Facet/Self-Centering

Series: EF Series TA403324

Shank Size: 10 mm

Shank Type: Whistle Notch

Type: High Performance

Unique sub-micrograin carbide grade
4-facet point grind
Special web design and flute construction
Longer tool life and sharper cutting edges
Greater cutting edge strength
Better chip evacuation

DIN 6537 K|DIN 6535 HE|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Catalog

Manufacturer Name: Emuge-Franken

Applicable Materials: Steel, Stainless Steel, Cast Materials, Non-Ferrous Metals, Special Materials and Hard Materials

Country of Origin: DE

Cutting Depth: 3XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.3681 in

Drill Size - Metric: 9.35 mm

Finish: TiAlN-TA14 Coated

Flute Length: 47 mm

Flute Type: Spiral

Manufacturer Name: Emuge-Franken

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 89 mm

Point Angle: 140 deg

Point Type: 4-Facet/Self-Centering

Series: EF Series TA403324

Shank Size: 10 mm

Shank Type: Whistle Notch

Type: High Performance

Unique sub-micrograin carbide grade
4-facet point grind
Special web design and flute construction
Longer tool life and sharper cutting edges
Greater cutting edge strength
Better chip evacuation

DIN 6537 K|DIN 6535 HE|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
