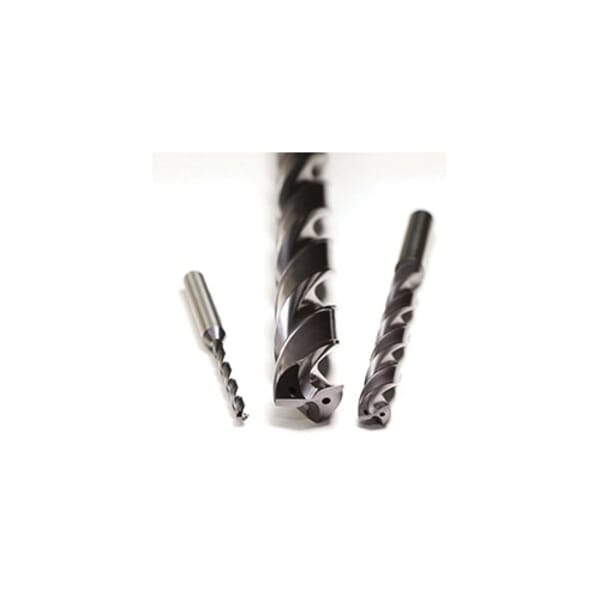

Emuge TA223344.0380 EF Series TA223344 Coolant Fed High Performance Long Length Drill, #25 Drill - Wire, 0.1495 in Drill - Decimal Inch, 88 mm OAL, Solid Carbide, TiAlN-TA14 Coated

ManufacturerEmuge

Part #826512077

MFG #TA223344.0380

Emuge Long Length Drill, Coolant Fed High Performance, Series: EF Series TA223344, #25 Drill Size - Wire, 0.1495 in Drill Size - Decimal Inch, 88 mm Overall Length, 8XD Cutting Depth, 2 Flutes, Spiral Flute, 48 mm Flute Length, 6 mm Shank, Cylindrical Shank, 135 deg Point, 4-Facet/Self-Centering Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, TiAlN-TA14 Coated, Applicable Materials: Steel, Stainless Steel, Cast Materials and Non-Ferrous Metals

$189.73

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Applicable Materials: Steel, Stainless Steel, Cast Materials and Non-Ferrous Metals

Country of Origin: DE

Cutting Depth: 8XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.1495 in

Drill Size - Wire: #25

Finish: TiAlN-TA14 Coated

Flute Length: 48 mm

Flute Type: Spiral

Manufacturer Name: Emuge-Franken

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 88 mm

Point Angle: 135 deg

Point Type: 4-Facet/Self-Centering

Series: EF Series TA223344

Shank Size: 6 mm

Shank Type: Cylindrical

Type: Coolant Fed High Performance

Unique sub-micrograin carbide grade
4-facet point grind
Special web design and flute construction
Longer tool life and sharper cutting edges
Greater cutting edge strength
Better chip evacuation
Double margin fluting
Accurate positioning and hole size

DIN 6535 HA|DIN 6537 K|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Long Length Drill, Coolant Fed High Performance, Series: EF Series TA223344, #25 Drill Size - Wire, 0.1495 in Drill Size - Decimal Inch, 88 mm Overall Length, 8XD Cutting Depth, 2 Flutes, Spiral Flute, 48 mm Flute Length, 6 mm Shank, Cylindrical Shank, 135 deg Point, 4-Facet/Self-Centering Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, TiAlN-TA14 Coated, Applicable Materials: Steel, Stainless Steel, Cast Materials and Non-Ferrous Metals

Catalog

Manufacturer Name: Emuge-Franken

Applicable Materials: Steel, Stainless Steel, Cast Materials and Non-Ferrous Metals

Country of Origin: DE

Cutting Depth: 8XD

Cutting Direction: Right Hand

Cutting Edge Material: Solid Carbide

Drill Size - Decimal Inch: 0.1495 in

Drill Size - Wire: #25

Finish: TiAlN-TA14 Coated

Flute Length: 48 mm

Flute Type: Spiral

Manufacturer Name: Emuge-Franken

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 88 mm

Point Angle: 135 deg

Point Type: 4-Facet/Self-Centering

Series: EF Series TA223344

Shank Size: 6 mm

Shank Type: Cylindrical

Type: Coolant Fed High Performance

Unique sub-micrograin carbide grade
4-facet point grind
Special web design and flute construction
Longer tool life and sharper cutting edges
Greater cutting edge strength
Better chip evacuation
Double margin fluting
Accurate positioning and hole size

DIN 6535 HA|DIN 6537 K|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Long Length Drill, Coolant Fed High Performance, Series: EF Series TA223344, #25 Drill Size - Wire, 0.1495 in Drill Size - Decimal Inch, 88 mm Overall Length, 8XD Cutting Depth, 2 Flutes, Spiral Flute, 48 mm Flute Length, 6 mm Shank, Cylindrical Shank, 135 deg Point, 4-Facet/Self-Centering Point, Right Hand Cutting, Solid Carbide Cutting Edge, Solid Carbide, TiAlN-TA14 Coated, Applicable Materials: Steel, Stainless Steel, Cast Materials and Non-Ferrous Metals
