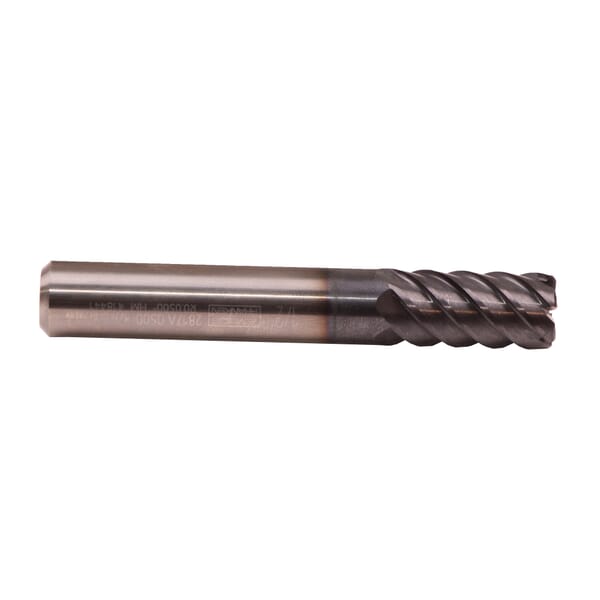

Emuge 2817A.016 Hard-Cut 2817A Standard Length Square End Corner Radius End Mill, 16 mm Dia Cutter, 1 mm Corner Radius, 32 mm Length of Cut, 6 Flutes, 16 mm Dia Shank, 92 mm OAL, TiAlN Coated

ManufacturerEmuge

Part #826510656

MFG #2817A.016

Emuge Corner Radius End Mill, Standard Length Square End, Series: Hard-Cut 2817A, 16 mm Diameter Cutter, 1 mm Corner Radius, 92 mm Overall Length, 32 mm Length of Cut, 6 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

$362.80

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Corner Radius: 1 mm

Country of Origin: DE

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 50 deg

Length of Cut: 32 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 6

Overall Length: 92 mm

Series: Hard-Cut 2817A

Shank Diameter: 16 mm

Shank Type: Cylindrical

Type: Standard Length Square End

Hard-Cut series of carbide end mills is specifically developed for machining hardened materials (up to 66 Rc)
Well suited for the die and mold industry and are manufactured with extremely tight tolerances
Multi-flute - 6 and 8 flute construction for hard milling
Fully blended corner radius
TiAlN coated for heat and wear resistance

Emuge Corner Radius End Mill, Standard Length Square End, Series: Hard-Cut 2817A, 16 mm Diameter Cutter, 1 mm Corner Radius, 92 mm Overall Length, 32 mm Length of Cut, 6 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Corner Radius: 1 mm

Country of Origin: DE

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 50 deg

Length of Cut: 32 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 6

Overall Length: 92 mm

Series: Hard-Cut 2817A

Shank Diameter: 16 mm

Shank Type: Cylindrical

Type: Standard Length Square End

Hard-Cut series of carbide end mills is specifically developed for machining hardened materials (up to 66 Rc)
Well suited for the die and mold industry and are manufactured with extremely tight tolerances
Multi-flute - 6 and 8 flute construction for hard milling
Fully blended corner radius
TiAlN coated for heat and wear resistance

Emuge Corner Radius End Mill, Standard Length Square End, Series: Hard-Cut 2817A, 16 mm Diameter Cutter, 1 mm Corner Radius, 92 mm Overall Length, 32 mm Length of Cut, 6 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
