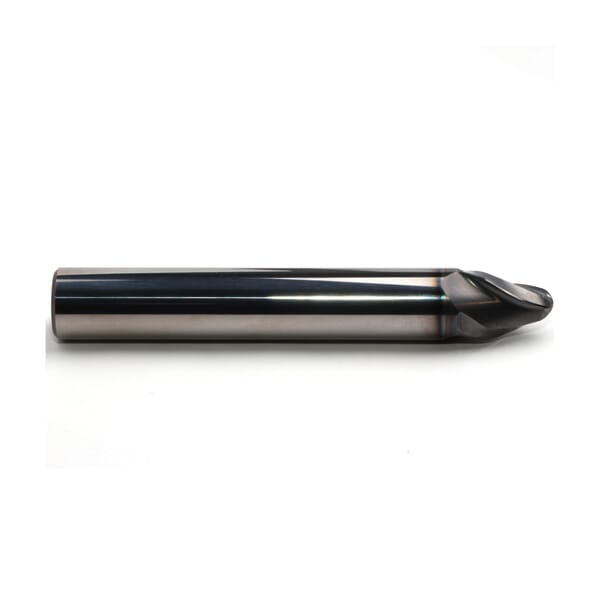

Emuge 3540L.1615AA Circle Segment 3540L Form A Tapered End Mill, 16 mm Dia Cutter, 18.5 mm Length of Cut, 3 Flutes, 16 mm Dia Shank, 108 mm OAL, AlCr Coated

ManufacturerEmuge

Part #826509993

MFG #3540L.1615AA

Emuge Tapered End Mill, Form A, Series: Circle Segment 3540L, 16 mm Diameter Cutter, 108 mm Overall Length, 18.5 mm Length of Cut, 3 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 20/30 deg Helix Angle, Cylindrical Shank, Carbide, AlCr Coated

$346.72

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: AlCr Coated

Flute Type: Spiral

Helix Angle: 20/30 deg

Length of Cut: 18.5 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 108 mm

Series: Circle Segment 3540L

Shank Diameter: 16 mm

Shank Type: Cylindrical

Type: Form A

Solid carbide circle segment end mills with taper form that can simulate a 250 to 500 mm radius cutter
Low vibration machining
Flute form tolerance = +/-0.01 mm
Suitable for all most all materials
AlCr multi-layer PVD coating for heat and wear resistance
Form A - allows up to 45 deg tilt angle

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Tapered End Mill, Form A, Series: Circle Segment 3540L, 16 mm Diameter Cutter, 108 mm Overall Length, 18.5 mm Length of Cut, 3 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 20/30 deg Helix Angle, Cylindrical Shank, Carbide, AlCr Coated

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: AlCr Coated

Flute Type: Spiral

Helix Angle: 20/30 deg

Length of Cut: 18.5 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 108 mm

Series: Circle Segment 3540L

Shank Diameter: 16 mm

Shank Type: Cylindrical

Type: Form A

Solid carbide circle segment end mills with taper form that can simulate a 250 to 500 mm radius cutter
Low vibration machining
Flute form tolerance = +/-0.01 mm
Suitable for all most all materials
AlCr multi-layer PVD coating for heat and wear resistance
Form A - allows up to 45 deg tilt angle

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
