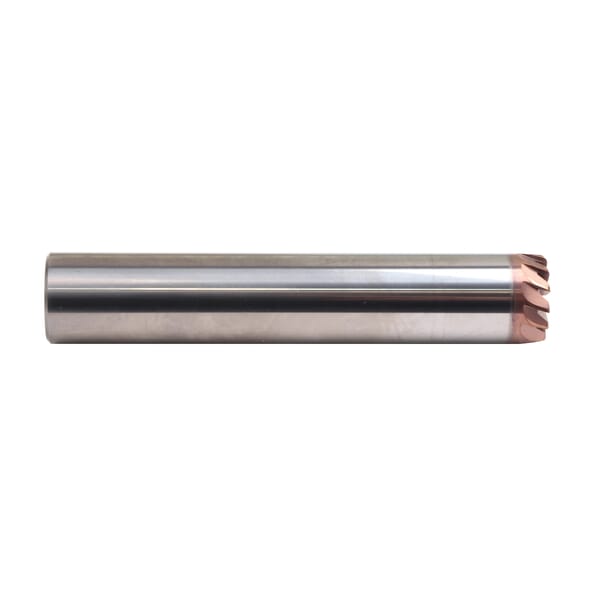

Emuge 2678AZ.011010 Turbine Program 2678AZ Taper Torus Long 8 deg Corner Radius End Mill With Axial Through Coolant, 11 mm Dia Cutter, 1 mm Corner Radius, 3.5 mm Length of Cut, 7 Flutes, 12 mm Dia Shank, 108 mm OAL, TiAlN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge 2678AZ.011010 Turbine Program 2678AZ Taper Torus Long 8 deg Corner Radius End Mill With Axial Through Coolant, 11 mm Dia Cutter, 1 mm Corner Radius, 3.5 mm Length of Cut, 7 Flutes, 12 mm Dia Shank, 108 mm OAL, TiAlN Coated

ManufacturerEmuge

Part #826509775

MFG #2678AZ.011010

Emuge Corner Radius End Mill, Taper Torus Long 8 deg, Series: Turbine Program 2678AZ, 11 mm Diameter Cutter, 1 mm Corner Radius, 108 mm Overall Length, 3.5 mm Length of Cut, 7 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

$170.67

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Corner Radius: 1 mm

Country of Origin: DE

Cutter Diameter: 11 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 20 deg

Length of Cut: 3.5 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 7

Overall Length: 108 mm

Series: Turbine Program 2678AZ

Shank Diameter: 12 mm

Shank Type: Cylindrical

Type: Taper Torus Long 8 deg

Turbine tools can be used in the die and mold industry as well
Torus or "cupped" radius end design increases the step over length and reduces cycle time
The cutting flutes are tapered for increased efficiency
TiAlN coated for maximum tool life

Emuge Corner Radius End Mill, Taper Torus Long 8 deg, Series: Turbine Program 2678AZ, 11 mm Diameter Cutter, 1 mm Corner Radius, 108 mm Overall Length, 3.5 mm Length of Cut, 7 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Corner Radius: 1 mm

Country of Origin: DE

Cutter Diameter: 11 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 20 deg

Length of Cut: 3.5 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 7

Overall Length: 108 mm

Series: Turbine Program 2678AZ

Shank Diameter: 12 mm

Shank Type: Cylindrical

Type: Taper Torus Long 8 deg

Turbine tools can be used in the die and mold industry as well
Torus or "cupped" radius end design increases the step over length and reduces cycle time
The cutting flutes are tapered for increased efficiency
TiAlN coated for maximum tool life

Emuge Corner Radius End Mill, Taper Torus Long 8 deg, Series: Turbine Program 2678AZ, 11 mm Diameter Cutter, 1 mm Corner Radius, 108 mm Overall Length, 3.5 mm Length of Cut, 7 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
