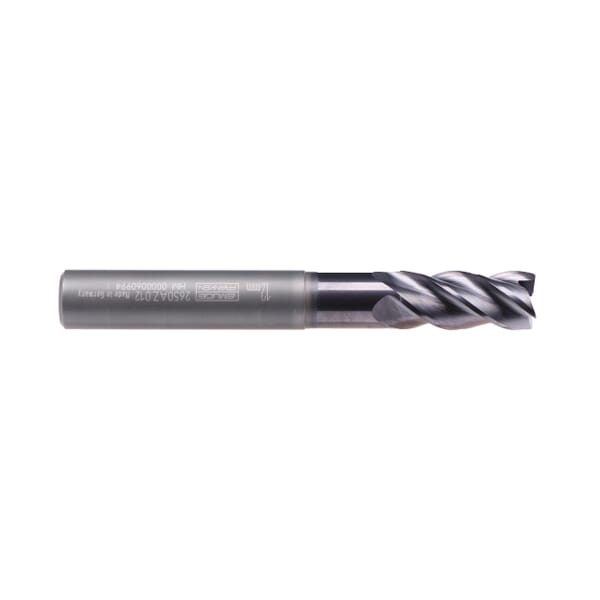

Emuge 2650AZ.010 TiNox-Cut 2650AZ Square End Mill With Axial Through Coolant, 10 mm Dia Cutter, 22 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 80 mm OAL, TiAlN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge 2650AZ.010 TiNox-Cut 2650AZ Square End Mill With Axial Through Coolant, 10 mm Dia Cutter, 22 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 80 mm OAL, TiAlN Coated

ManufacturerEmuge

Part #826509415

MFG #2650AZ.010

Emuge Square End Mill, Series: TiNox-Cut 2650AZ, 10 mm Cutter Dia, 80 mm Overall Length, 22 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Dia, Right Hand Cutting, 38/40 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

$152.72

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 10 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 38/40 deg

Length of Cut: 22 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 80 mm

Series: TiNox-Cut 2650AZ

Shank Diameter: 10 mm

Shank Type: Cylindrical

38/40 deg vibration dampening variable flute spacing
Fully blended corner radius
Heat and wear resistant TiAlN - PVD applied coating
Finishing flute profile for tough materials
Coolant fed (axial) design for efficient chip evacuation
Tool shanks are held to h5 tolerance and have a roughened surface (non-polished) for greater gripping force
Machining of difficult to cut materials

Emuge Square End Mill, Series: TiNox-Cut 2650AZ, 10 mm Cutter Dia, 80 mm Overall Length, 22 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Dia, Right Hand Cutting, 38/40 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 10 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 38/40 deg

Length of Cut: 22 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 80 mm

Series: TiNox-Cut 2650AZ

Shank Diameter: 10 mm

Shank Type: Cylindrical

38/40 deg vibration dampening variable flute spacing
Fully blended corner radius
Heat and wear resistant TiAlN - PVD applied coating
Finishing flute profile for tough materials
Coolant fed (axial) design for efficient chip evacuation
Tool shanks are held to h5 tolerance and have a roughened surface (non-polished) for greater gripping force
Machining of difficult to cut materials

Emuge Square End Mill, Series: TiNox-Cut 2650AZ, 10 mm Cutter Dia, 80 mm Overall Length, 22 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Dia, Right Hand Cutting, 38/40 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
