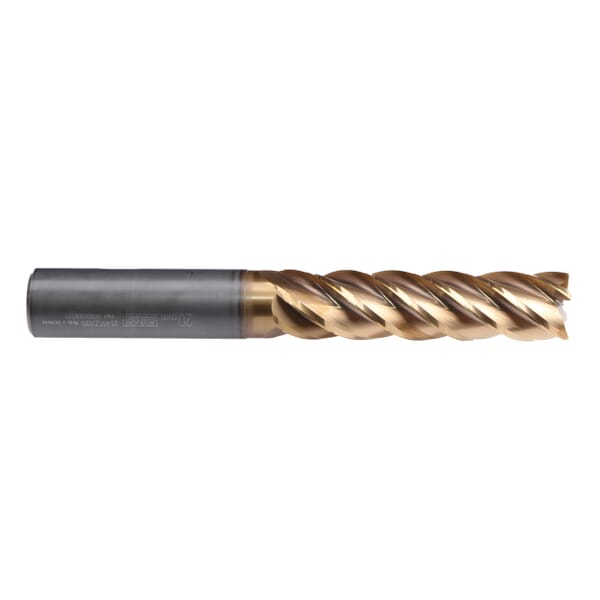

Emuge 2541TZ.020 Trochoidal TiNox-Cut 2541TZ Square End Mill With Axial Through Coolant, 20 mm Dia Cutter, 4XD Length of Cut, 5 Flutes, 20 mm Dia Shank, 150 mm OAL, TiN/TiAlN Coated

ManufacturerEmuge

Part #826509333

MFG #2541TZ.020

Emuge Square End Mill, Series: Trochoidal TiNox-Cut 2541TZ, 20 mm Diameter Cutter, 150 mm Overall Length, 4XD Length of Cut, 5 Flutes, Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 38/42 deg Helix Angle, Weldon Flat Shank, Carbide, TiN/TiAlN Coated

$574.64

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 20 mm

Cutting Direction: Right Hand

Finish: TiN/TiAlN Coated

Flute Type: Spiral

Helix Angle: 38/42 deg

Length of Cut: 4XD

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 5

Overall Length: 150 mm

Series: Trochoidal TiNox-Cut 2541TZ

Shank Diameter: 20 mm

Shank Type: Weldon Flat

The Trochoidal TiNox-Cut series was especially developed for use with advanced milling strategies in machining titanium alloys, nickel based alloys and stainless steel
Vibration dampening with variable helix/flute spacing
Heat and wear resistant multi-layer TiN/TiAlN - PVD coating
Roughing/finishing flute profile for optimum performance
Staggered chip breaker design for even wear in depths up to 4XD
Coolant fed (axial) design for efficient chip evacuation
Machining of difficult to cut materials

Emuge Square End Mill, Series: Trochoidal TiNox-Cut 2541TZ, 20 mm Diameter Cutter, 150 mm Overall Length, 4XD Length of Cut, 5 Flutes, Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 38/42 deg Helix Angle, Weldon Flat Shank, Carbide, TiN/TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
