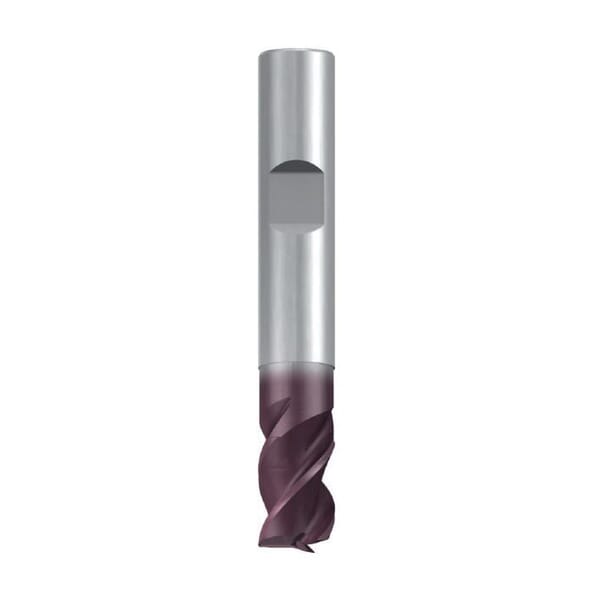

Emuge 2517A.00575 Top-Cut 2517A Stub Length Square End Mill, 5.75 mm Dia Cutter, 7 mm Length of Cut, 3 Flutes, 6 mm Dia Shank, 54 mm OAL, TiAlN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge 2517A.00575 Top-Cut 2517A Stub Length Square End Mill, 5.75 mm Dia Cutter, 7 mm Length of Cut, 3 Flutes, 6 mm Dia Shank, 54 mm OAL, TiAlN Coated

ManufacturerEmuge

Part #826509222

MFG #2517A.00575

Emuge Square End Mill, Stub Length, Series: Top-Cut 2517A, 5.75 mm Diameter Cutter, 54 mm Overall Length, 7 mm Length of Cut, 3 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 34/38 deg Helix Angle, Weldon Flat Shank, Carbide, TiAlN Coated

$52.94

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 5.75 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 34/38 deg

Length of Cut: 7 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 54 mm

Series: Top-Cut 2517A

Shank Diameter: 6 mm

Shank Type: Weldon Flat

Type: Stub Length

Top-Cut tools are a versatile variable helix carbide end mill design
Tapered core diameter for added rigidity in the cut
34/38 deg variable helix design for vibration dampening
Center cutting end design
PVD applied TiAlN coating for heat and wear resistance

Emuge Square End Mill, Stub Length, Series: Top-Cut 2517A, 5.75 mm Diameter Cutter, 54 mm Overall Length, 7 mm Length of Cut, 3 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 34/38 deg Helix Angle, Weldon Flat Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutter Diameter: 5.75 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 34/38 deg

Length of Cut: 7 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 54 mm

Series: Top-Cut 2517A

Shank Diameter: 6 mm

Shank Type: Weldon Flat

Type: Stub Length

Top-Cut tools are a versatile variable helix carbide end mill design
Tapered core diameter for added rigidity in the cut
34/38 deg variable helix design for vibration dampening
Center cutting end design
PVD applied TiAlN coating for heat and wear resistance

Emuge Square End Mill, Stub Length, Series: Top-Cut 2517A, 5.75 mm Diameter Cutter, 54 mm Overall Length, 7 mm Length of Cut, 3 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 34/38 deg Helix Angle, Weldon Flat Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
