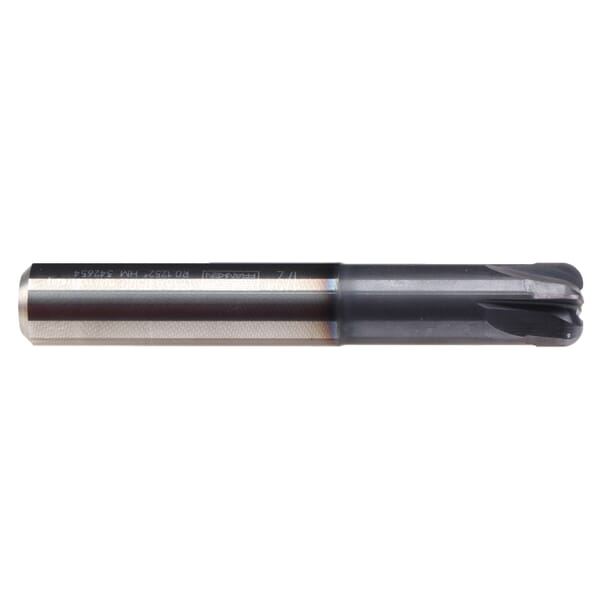

Emuge 1936A.005 Hard-Cut 1936A Short Length Torus End Corner Radius End Mill, 5 mm Dia Cutter, 1.25 mm Corner Radius, 3 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 57 mm OAL, TiAlN Coated

ManufacturerEmuge

Part #826508855

MFG #1936A.005

Emuge Corner Radius End Mill, Short Length Torus End, Series: Hard-Cut 1936A, 5 mm Cutter Dia, 1.25 mm Corner Radius, 57 mm Overall Length, 3 mm Length of Cut, 4 Flutes, Straight Flute, 6 mm Shank Dia, Right Hand Cutting, 0 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

$112.95

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Corner Radius: 1.25 mm

Country of Origin: DE

Cutter Diameter: 5 mm

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Straight

Helix Angle: 0 deg

Length of Cut: 3 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 4

Overall Length: 57 mm

Series: Hard-Cut 1936A

Shank Diameter: 6 mm

Shank Type: Cylindrical

Type: Short Length Torus End

The Hard-Cut torus series of carbide end mills is specifically developed for machining hardened materials
Short, 2-flute length with 30 deg helix angle for rough and finishing up to 63 Rc
Straight 4 flute design for finishing operations up to 66 Rc
6 and 8 flute designs for fine finishing in hardened materials 44-66 Rc
TiAlN coated for heat and wear resistance

Emuge Corner Radius End Mill, Short Length Torus End, Series: Hard-Cut 1936A, 5 mm Cutter Dia, 1.25 mm Corner Radius, 57 mm Overall Length, 3 mm Length of Cut, 4 Flutes, Straight Flute, 6 mm Shank Dia, Right Hand Cutting, 0 deg Helix Angle, Cylindrical Shank, Carbide, TiAlN Coated

DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
