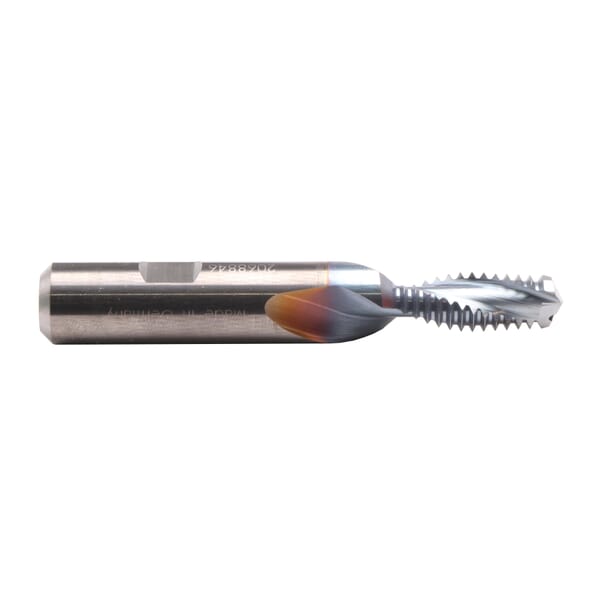

Emuge GF432206.0050 BGF Thriller GF432206 BGF-Z Style Spiral Flute Thread Mill With Axial Through Coolant, M5x0.8 Coarse Thread, 55 mm OAL, 2 Flutes, 6 mm Dia Shank

ManufacturerEmuge

Part #826505980

MFG #GF432206.0050

Emuge Spiral Flute Thread Mill, BGF-Z Style, Series: BGF Thriller GF432206, M5x0.8 Thread, Coarse Thread, 4.04 mm Diameter Cutting, 9.65 mm Length of Cut, 55 mm Overall Length, 2 Flutes, Weldon Flat Shank, 6 mm Shank Diameter, 1.4173 in Shank Length, Carbide, TiCN Coated

$414.34

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 4.04 mm

Finish: TiCN Coated

Length of Cut: 9.65 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 2

Overall Length: 55 mm

Series: BGF Thriller GF432206

Shank Diameter: 6 mm

Shank Length: 1.4173 in

Shank Type: Weldon Flat

Thread Size: M5x0.8

Thread Type: Coarse

Type: BGF-Z Style

TiCN coated for additional wear resistance
Spiral 2-flute design
90 deg included chamfer angle
140 deg drill point angle

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

BGF-Z2/2XD Thriller. This original Emuge design will drill, thread mill and chamfer with one tool which can help to reduce cycle time by eliminating tool changes and also reduce the cost of procuring three separate tools. Recommended for cast iron, cast aluminum alloys and copper alloys.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 4.04 mm

Finish: TiCN Coated

Length of Cut: 9.65 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 2

Overall Length: 55 mm

Series: BGF Thriller GF432206

Shank Diameter: 6 mm

Shank Length: 1.4173 in

Shank Type: Weldon Flat

Thread Size: M5x0.8

Thread Type: Coarse

Type: BGF-Z Style

TiCN coated for additional wear resistance
Spiral 2-flute design
90 deg included chamfer angle
140 deg drill point angle

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
