Self-Lock GF333101.1052 SELF-LOCK GF333101 GSF Style Straight Flute Thread Mill With Axial Through Coolant, M6x1 LK-Coarse Thread, 62 mm OAL, 3 Flutes, 8 mm Dia Shank

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Self-Lock GF333101.1052 SELF-LOCK GF333101 GSF Style Straight Flute Thread Mill With Axial Through Coolant, M6x1 LK-Coarse Thread, 62 mm OAL, 3 Flutes, 8 mm Dia Shank

ManufacturerSelf-Lock

Part #826505782

MFG #GF333101.1052

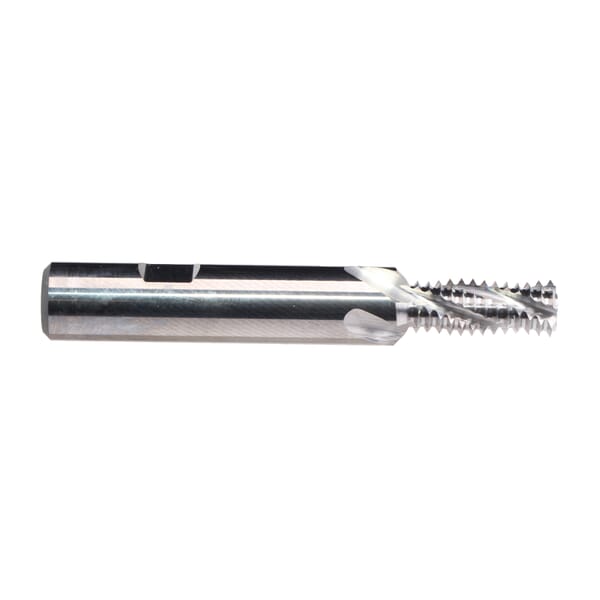

Self-Lock Straight Flute Thread Mill, GSF Style, Series: SELF-LOCK GF333101, M6x1 Thread, LK-Coarse Thread, 4.8 mm Diameter Cutting, 12.4 mm Length of Cut, 62 mm Overall Length, 3 Flutes, Weldon Flat Shank, 8 mm Shank Diameter, 1.4173 in Shank Length, Carbide, Bright

$402.82

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 4.8 mm

Finish: Bright

Length of Cut: 12.4 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 62 mm

Series: SELF-LOCK GF333101

Shank Diameter: 8 mm

Shank Length: 1.4173 in

Shank Type: Weldon Flat

Thread Size: M6x1

Thread Type: LK-Coarse

Type: GSF Style

GSF 2XD thread mill with countersink step
One tool for threading and 90 deg chamfer operations
For internal threading
LK-M SELF-LOCK thread form which is an Emuge standard
Coolant fed for efficient chip evacuation
Bright finished for abrasion resistance

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Self-Lock Straight Flute Thread Mill, GSF Style, Series: SELF-LOCK GF333101, M6x1 Thread, LK-Coarse Thread, 4.8 mm Diameter Cutting, 12.4 mm Length of Cut, 62 mm Overall Length, 3 Flutes, Weldon Flat Shank, 8 mm Shank Diameter, 1.4173 in Shank Length, Carbide, Bright

Manufacturer Name: Emuge-Franken

Country of Origin: DE

Cutting Diameter: 4.8 mm

Finish: Bright

Length of Cut: 12.4 mm

Manufacturer Name: Emuge-Franken

Material: Carbide

Number of Flutes: 3

Overall Length: 62 mm

Series: SELF-LOCK GF333101

Shank Diameter: 8 mm

Shank Length: 1.4173 in

Shank Type: Weldon Flat

Thread Size: M6x1

Thread Type: LK-Coarse

Type: GSF Style

GSF 2XD thread mill with countersink step
One tool for threading and 90 deg chamfer operations
For internal threading
LK-M SELF-LOCK thread form which is an Emuge standard
Coolant fed for efficient chip evacuation
Bright finished for abrasion resistance

PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Self-Lock Straight Flute Thread Mill, GSF Style, Series: SELF-LOCK GF333101, M6x1 Thread, LK-Coarse Thread, 4.8 mm Diameter Cutting, 12.4 mm Length of Cut, 62 mm Overall Length, 3 Flutes, Weldon Flat Shank, 8 mm Shank Diameter, 1.4173 in Shank Length, Carbide, Bright
