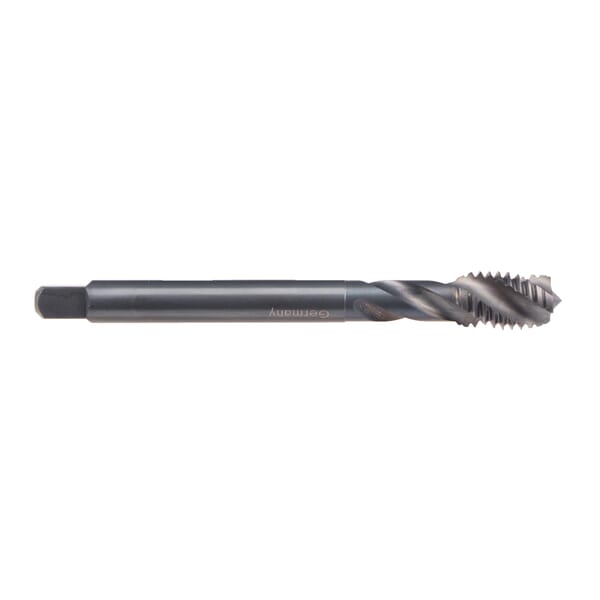

Emuge C0503200.0303 Enorm 2-VA C0503200 Form C Reduced Shank Spiral Flute Tap, Right Hand Cutting, M12x1.5 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, Ne2 Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge C0503200.0303 Enorm 2-VA C0503200 Form C Reduced Shank Spiral Flute Tap, Right Hand Cutting, M12x1.5 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, Ne2 Coated, HSS-E

ManufacturerEmuge

Part #826505275

MFG #C0503200.0303

Emuge Spiral Flute Tap, Form C Reduced Shank, Series: Enorm 2-VA C0503200, Measurement System: Metric, Fine, M12x1.5, Modified Bottoming Chamfer, 4 Flutes, HSS-E, Ne2 Coated, Class of Fit: 6H, Right Hand Cutting, 22 mm Thread Length, 100 mm Overall Length, 9 mm Shank Dia, 85 mm Shank Length, Right Hand Flute Direction, Steel, Stainless Steel and Cast Iron Material Application, No Through Coolant (Yes/No)

$80.32

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Ne2 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel and Cast Iron

Measurement System: Metric

Number of Flutes: 4

Overall Length: 100 mm

Series: Enorm 2-VA C0503200

Shank Diameter: 9 mm

Shank Length: 85 mm

Thread Length: 22 mm

Thread Size: M12x1.5

Thread Standard: Fine

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

The fast spiral flute (35 deg) provides good chip removal from blind holes
VA designates that the tool is designed for stainless steel and steel alloys
NE2 surface treatment - steam oxide layer is applied to the tool surface
This oxide layer protects the surface and acts as a good carrier of lubricants
Cold welding which occurs especially with low carbon, soft steels, can be prevented with NE2 surface treatment
DIN/DIN standard dimensions for overall length and shank size

DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Spiral Flute Tap, Form C Reduced Shank, Series: Enorm 2-VA C0503200, Measurement System: Metric, Fine, M12x1.5, Modified Bottoming Chamfer, 4 Flutes, HSS-E, Ne2 Coated, Class of Fit: 6H, Right Hand Cutting, 22 mm Thread Length, 100 mm Overall Length, 9 mm Shank Dia, 85 mm Shank Length, Right Hand Flute Direction, Steel, Stainless Steel and Cast Iron Material Application, No Through Coolant (Yes/No)

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 6H

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Ne2 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel and Cast Iron

Measurement System: Metric

Number of Flutes: 4

Overall Length: 100 mm

Series: Enorm 2-VA C0503200

Shank Diameter: 9 mm

Shank Length: 85 mm

Thread Length: 22 mm

Thread Size: M12x1.5

Thread Standard: Fine

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

The fast spiral flute (35 deg) provides good chip removal from blind holes
VA designates that the tool is designed for stainless steel and steel alloys
NE2 surface treatment - steam oxide layer is applied to the tool surface
This oxide layer protects the surface and acts as a good carrier of lubricants
Cold welding which occurs especially with low carbon, soft steels, can be prevented with NE2 surface treatment
DIN/DIN standard dimensions for overall length and shank size

DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Spiral Flute Tap, Form C Reduced Shank, Series: Enorm 2-VA C0503200, Measurement System: Metric, Fine, M12x1.5, Modified Bottoming Chamfer, 4 Flutes, HSS-E, Ne2 Coated, Class of Fit: 6H, Right Hand Cutting, 22 mm Thread Length, 100 mm Overall Length, 9 mm Shank Dia, 85 mm Shank Length, Right Hand Flute Direction, Steel, Stainless Steel and Cast Iron Material Application, No Through Coolant (Yes/No)
