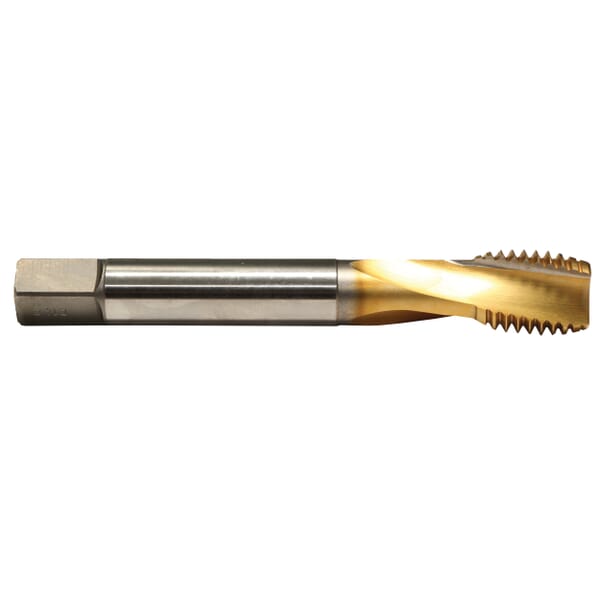

Emuge CU583701.5013 Rekord 2D-Z-BF IKZ CU583701 Form C Reduced Shank Chipbreaker Tap, Right Hand Cutting, 1/2-13 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E

ManufacturerEmuge

Part #826505137

MFG #CU583701.5013

Emuge Chipbreaker Tap, Form C Reduced Shank, Series: Rekord 2D-Z-BF IKZ CU583701, Measurement System: Imperial, UNC Thread Standard, 1/2-13 Thread, Modified Bottoming Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2BX, Right Hand Cutting Direction, 0.984 in Thread Length, 4.331 in Overall Length, 0.367 in Shank Diameter, 3.347 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant

$147.57

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 4.331 in

Series: Rekord 2D-Z-BF IKZ CU583701

Shank Diameter: 0.367 in

Shank Length: 3.347 in

Thread Length: 0.984 in

Thread Size: 1/2-13

Thread Standard: UNC

Through Coolant (Yes/No): Yes

Type: Form C Reduced Shank

Rekord D-Z-BF tap with CBTz geometry is a slow spiral design for blind holes, especially CNC machines with synchronous feed control
BF "bright face" chamfer grind helps ensure short chip formation
IKZ - axial coolant hole design for optimum chip evacuation
TiN coated for additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Chipbreaker Tap, Form C Reduced Shank, Series: Rekord 2D-Z-BF IKZ CU583701, Measurement System: Imperial, UNC Thread Standard, 1/2-13 Thread, Modified Bottoming Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2BX, Right Hand Cutting Direction, 0.984 in Thread Length, 4.331 in Overall Length, 0.367 in Shank Diameter, 3.347 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 4.331 in

Series: Rekord 2D-Z-BF IKZ CU583701

Shank Diameter: 0.367 in

Shank Length: 3.347 in

Thread Length: 0.984 in

Thread Size: 1/2-13

Thread Standard: UNC

Through Coolant (Yes/No): Yes

Type: Form C Reduced Shank

Rekord D-Z-BF tap with CBTz geometry is a slow spiral design for blind holes, especially CNC machines with synchronous feed control
BF "bright face" chamfer grind helps ensure short chip formation
IKZ - axial coolant hole design for optimum chip evacuation
TiN coated for additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Chipbreaker Tap, Form C Reduced Shank, Series: Rekord 2D-Z-BF IKZ CU583701, Measurement System: Imperial, UNC Thread Standard, 1/2-13 Thread, Modified Bottoming Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2BX, Right Hand Cutting Direction, 0.984 in Thread Length, 4.331 in Overall Length, 0.367 in Shank Diameter, 3.347 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
