Emuge B010K101.0100 VHM Rekord 1A-HCUT/C B010K101 Form C Reinforced Shank Straight Flute Machine Tap, Right Hand Cutting, M10x1.5 Thread, Modified Bottoming Chamfer, 5 Flutes, TiCN Coated, Carbide

ManufacturerEmuge

Part #826504743

MFG #B010K101.0100

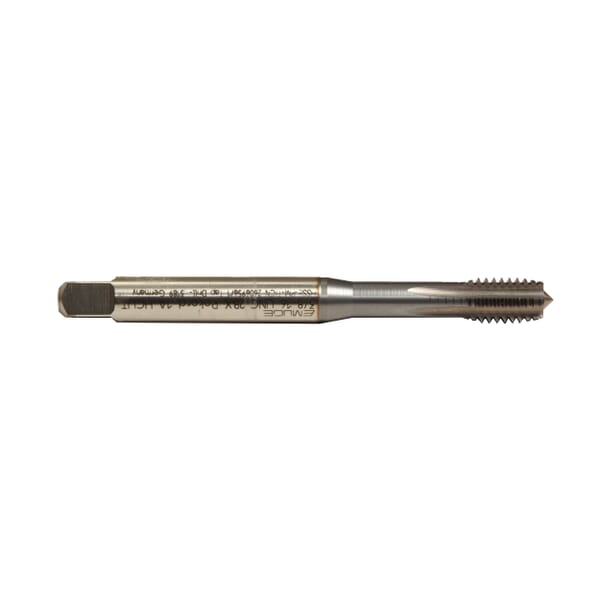

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: VHM Rekord 1A-HCUT/C B010K101, Measurement System: Metric, Coarse Thread Standard, M10x1.5 Thread, Modified Bottoming Chamfer, 5 Flutes, Carbide, TiCN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 22 mm Thread Length, 100 mm Overall Length, 10 mm Shank Diameter, 62 mm Shank Length, Hard Materials Material Application, No Through Coolant

$483.73

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: Carbide

Material Application: Hard Materials

Measurement System: Metric

Number of Flutes: 5

Overall Length: 100 mm

Series: VHM Rekord 1A-HCUT/C B010K101

Shank Diameter: 10 mm

Shank Length: 62 mm

Thread Length: 22 mm

Thread Size: M10x1.5

Thread Standard: Coarse

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank

Rekord A-HCUT is a straight flute carbide tap design best suited for short chipping, hardened steel
HCUT/D designates a form D (4-5P) chamfer length for through or blind holes
HCUT/C designates a form C (2-3P) chamfer length for blind holes
TiCN coated for wear resistance and additional tool life
Sub-micro grain carbide substrate
DIN/DIN standard dimensions for overall length and shank size

DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: VHM Rekord 1A-HCUT/C B010K101, Measurement System: Metric, Coarse Thread Standard, M10x1.5 Thread, Modified Bottoming Chamfer, 5 Flutes, Carbide, TiCN Coated, Class of Fit: 6HX, Right Hand Cutting Direction, 22 mm Thread Length, 100 mm Overall Length, 10 mm Shank Diameter, 62 mm Shank Length, Hard Materials Material Application, No Through Coolant
