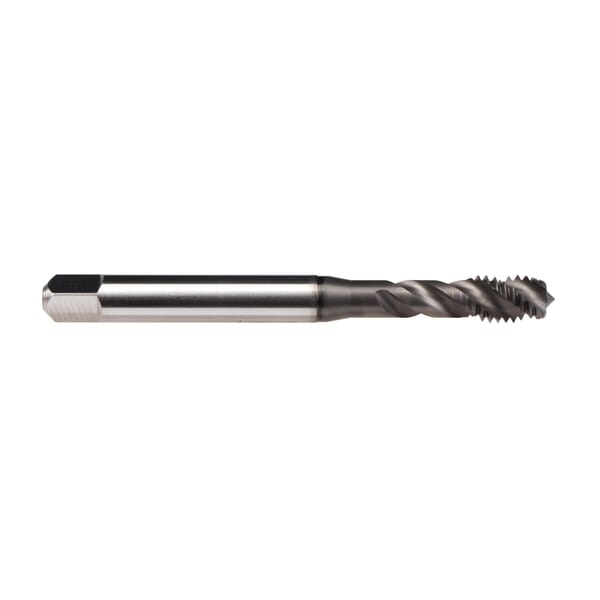

Self-Lock BU51C400.5715 Enorm 1-Z/E SELF-LOCK BU51C400 Form E Fast Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 3/8-24 Thread, Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, GLT-1 Coated, HSS-E

ManufacturerSelf-Lock

Part #826504671

MFG #BU51C400.5715

Self-Lock Spiral Flute Tap, Form E Fast Reinforced Shank, Series: Enorm 1-Z/E SELF-LOCK BU51C400, Measurement System: Imperial, LK-UNF, 3/8-24, Bottoming Chamfer, 4 Flutes, HSS-E, GLT-1 Coated, Class of Fit: BT, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, Right Hand Flute Direction

$111.99

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: BT

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-1 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 3.937 in

Series: Enorm 1-Z/E SELF-LOCK BU51C400

Shank Diameter: 0.381 in

Thread Length: 0.866 in

Thread Size: 3/8-24

Thread Standard: LK-UNF

Through Coolant (Yes/No): No

Type: Form E Fast Reinforced Shank

The fast spiral flute (45 deg) provides good chip removal from blind holes
Z designates a tool design for CNC controlled machines with synchronous feed control
GLT-1 multi-layer structure, PVD applied, anti-friction coating for maximum tool life
In a PVD process (500 deg C) a coating thickness of 2 to 4 um can be realized
The combination of a hard surface coating (approximately 3000 HV) with an anti-friction top layer yields decisive tool life advantages
Chip flow is also improved
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Self-Lock Spiral Flute Tap, Form E Fast Reinforced Shank, Series: Enorm 1-Z/E SELF-LOCK BU51C400, Measurement System: Imperial, LK-UNF, 3/8-24, Bottoming Chamfer, 4 Flutes, HSS-E, GLT-1 Coated, Class of Fit: BT, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, Right Hand Flute Direction

DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
