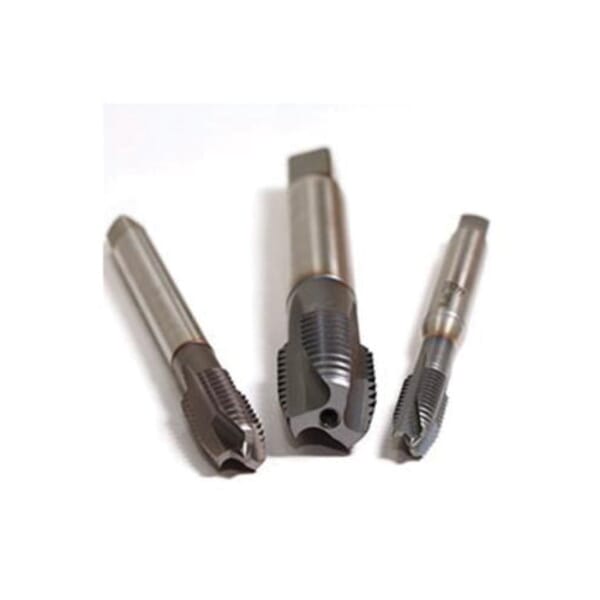

MultiTAP MULTITAP CU499300.5047 Spiral Point Tap, Right Hand Cutting, 1/2-20 Thread, Plug Chamfer, 3 Flutes, TiCN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

MultiTAP MULTITAP CU499300.5047 Spiral Point Tap, Right Hand Cutting, 1/2-20 Thread, Plug Chamfer, 3 Flutes, TiCN Coated, HSS-E

ManufacturerMultiTAP

Part #826504473

MFG #CU499300.5047

MultiTAP MULTITAP Spiral Point Tap, Measurement System: Imperial, UNF, 1/2-20, Plug Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B/3B, Right Hand Cutting, 0.984 in Thread Length, 4.331 in Overall Length, 0.367 in Shank Dia, Carbon Steel, Steel Alloy, Stainless Steel, Aluminum and Copper Material Application, No Through Coolant (Yes/No)

$45.81

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 2B/3B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Carbon Steel, Steel Alloy, Stainless Steel, Aluminum and Copper

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 4.331 in

Shank Diameter: 0.367 in

Thread Length: 0.984 in

Thread Size: 1/2-20

Thread Standard: UNF

Through Coolant (Yes/No): No

Form B (4-5 P) chamfer length
TiCN coated for additional tool life
This all purpose design is well suited to the job shop, short run tapping environment

ANSI Specified|DIN Rated

MultiTAP MULTITAP Spiral Point Tap, Measurement System: Imperial, UNF, 1/2-20, Plug Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B/3B, Right Hand Cutting, 0.984 in Thread Length, 4.331 in Overall Length, 0.367 in Shank Dia, Carbon Steel, Steel Alloy, Stainless Steel, Aluminum and Copper Material Application, No Through Coolant (Yes/No)
