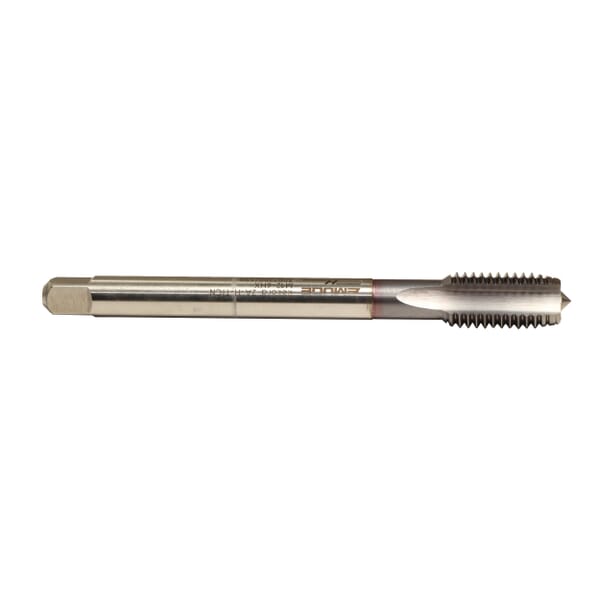

Emuge C0109101.0130 Rekord 2A-H C0109101 Form C Reduced Shank Straight Flute Machine Tap, Right Hand Cutting, M30x3.5 Thread, Modified Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826503232

MFG #C0109101.0130

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Rekord 2A-H C0109101, Measurement System: Metric, Coarse, M30x3.5, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 6HX, Right Hand Cutting, 40 mm Thread Length, 180 mm Overall Length, 22 mm Shank Dia, 140 mm Shank Length, Steel, Cast Iron, Copper Alloys and Synthetics Material Application, No Through Coolant (Yes/No)

$426.45

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Copper Alloys and Synthetics

Measurement System: Metric

Number of Flutes: 4

Overall Length: 180 mm

Series: Rekord 2A-H C0109101

Shank Diameter: 22 mm

Shank Length: 140 mm

Thread Length: 40 mm

Thread Size: M30x3.5

Thread Standard: Coarse

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials
TiCN coated for wear resistance and additional tool life
DIN/DIN standard dimensions on overall length and shank size

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Rekord 2A-H C0109101, Measurement System: Metric, Coarse, M30x3.5, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 6HX, Right Hand Cutting, 40 mm Thread Length, 180 mm Overall Length, 22 mm Shank Dia, 140 mm Shank Length, Steel, Cast Iron, Copper Alloys and Synthetics Material Application, No Through Coolant (Yes/No)

DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 6HX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Copper Alloys and Synthetics

Measurement System: Metric

Number of Flutes: 4

Overall Length: 180 mm

Series: Rekord 2A-H C0109101

Shank Diameter: 22 mm

Shank Length: 140 mm

Thread Length: 40 mm

Thread Size: M30x3.5

Thread Standard: Coarse

Through Coolant (Yes/No): No

Type: Form C Reduced Shank

Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials
TiCN coated for wear resistance and additional tool life
DIN/DIN standard dimensions on overall length and shank size

Emuge Straight Flute Machine Tap, Form C Reduced Shank, Series: Rekord 2A-H C0109101, Measurement System: Metric, Coarse, M30x3.5, Modified Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 6HX, Right Hand Cutting, 40 mm Thread Length, 180 mm Overall Length, 22 mm Shank Dia, 140 mm Shank Length, Steel, Cast Iron, Copper Alloys and Synthetics Material Application, No Through Coolant (Yes/No)

DIN/DIN Standard|DIN 13|DIN ISO 965-1|ASME B1.13M|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
