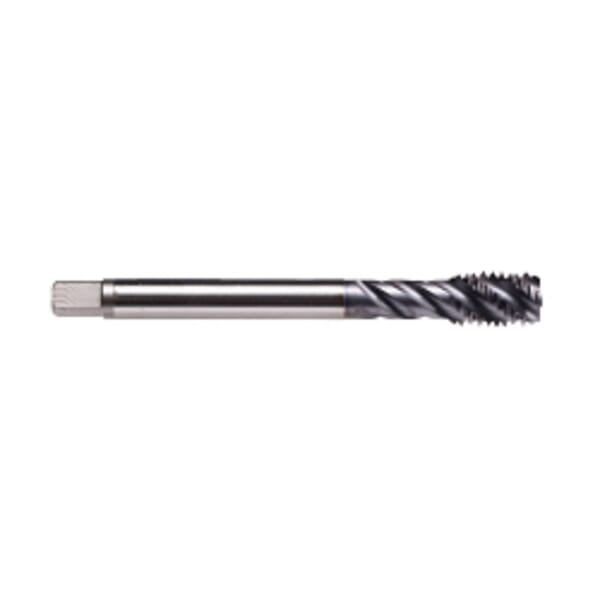

Emuge CU999400.5046 Enorm 2-Z/E-IKZ CU999400 Form E Reduced Shank Spiral Flute Tap, Right Hand Cutting, 7/16-20 Thread, Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiCN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge CU999400.5046 Enorm 2-Z/E-IKZ CU999400 Form E Reduced Shank Spiral Flute Tap, Right Hand Cutting, 7/16-20 Thread, Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826502102

MFG #CU999400.5046

Emuge Spiral Flute Tap, Form E Reduced Shank, Series: DWT, Measurement System: Imperial, UNF, 7/16-20, Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.323 in Shank Dia, Right Hand Flute Direction, Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys Material Application, Yes Through Coolant (Yes/No)

$135.91

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 3.937 in

Series: Enorm 2-Z/E-IKZ CU999400

Shank Diameter: 0.323 in

Thread Length: 0.866 in

Thread Size: 7/16-20

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Type: Form E Reduced Shank

The fast spiral flute (45 deg) provides good chip removal from blind holes
IKZ - axial coolant hole design
Z designates a tool design for CNC controlled machines with synchronous feed control
TiCN coated for abrasion resistance and additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Flute Tap, Form E Reduced Shank, Series: DWT, Measurement System: Imperial, UNF, 7/16-20, Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.323 in Shank Dia, Right Hand Flute Direction, Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys Material Application, Yes Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 3.937 in

Series: Enorm 2-Z/E-IKZ CU999400

Shank Diameter: 0.323 in

Thread Length: 0.866 in

Thread Size: 7/16-20

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Type: Form E Reduced Shank

The fast spiral flute (45 deg) provides good chip removal from blind holes
IKZ - axial coolant hole design
Z designates a tool design for CNC controlled machines with synchronous feed control
TiCN coated for abrasion resistance and additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Flute Tap, Form E Reduced Shank, Series: DWT, Measurement System: Imperial, UNF, 7/16-20, Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.323 in Shank Dia, Right Hand Flute Direction, Steel, Stainless Steel, Aluminum Alloys, Copper Alloys and Titanium Alloys Material Application, Yes Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
