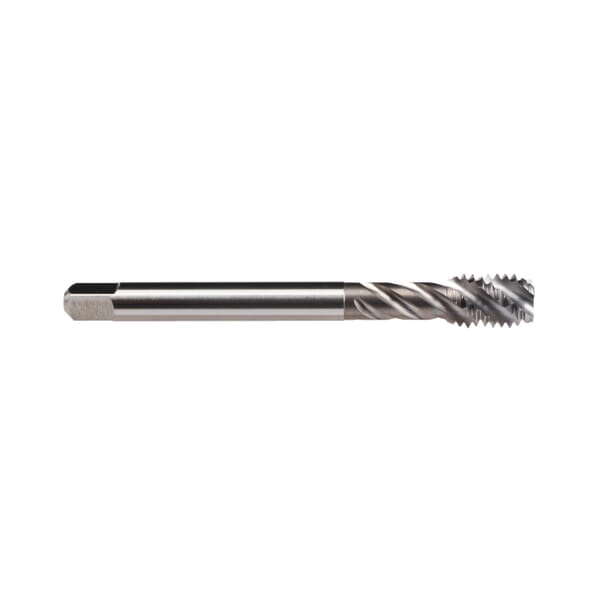

Emuge CU513510.5619 Enorm 2-Z/E CU513510 Form E Reduced Shank STI Tap, 3/8-16 Thread, 5 Flutes, 3B Class of Fit, Bottoming Chamfer, Right Hand Cutting, UNC Thread

ManufacturerEmuge

Part #826501928

MFG #CU513510.5619

Emuge STI Tap, Form E Reduced Shank, Series: Enorm 2-Z/E CU513510, Measurement System: Imperial, 3/8-16 Thread, UNC Thread Standard, 0.866 in Thread Length, 3.937 in Overall Length, 5 Flutes, Bottoming Chamfer, Right Hand Cutting Direction, Class of Fit: 3B, 0.367 in Shank Diameter, 0.393 in Tap Drill, 0.275 in Square, HSS-E, Bright

$71.26

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 3B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Number of Flutes: 5

Overall Length: 3.937 in

Series: Enorm 2-Z/E CU513510

Shank Diameter: 0.367 in

Square Size: 0.275 in

Tap Drill Size: 0.393 in

Thread Length: 0.866 in

Thread Size: 3/8-16

Thread Standard: UNC

Type: Form E Reduced Shank

The Enorm Z/E design is typically for blind hole threads in long chipping materials
The fast spiral flute (45 deg) provides good chip removal from blind holes
Z designates a tool design for CNC controlled machines with synchronous feed control
Short, form E (1.5-2 P) chamfer length
Bright finished for extended tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge STI Tap, Form E Reduced Shank, Series: Enorm 2-Z/E CU513510, Measurement System: Imperial, 3/8-16 Thread, UNC Thread Standard, 0.866 in Thread Length, 3.937 in Overall Length, 5 Flutes, Bottoming Chamfer, Right Hand Cutting Direction, Class of Fit: 3B, 0.367 in Shank Diameter, 0.393 in Tap Drill, 0.275 in Square, HSS-E, Bright

DIN/ANSI Standard|ASME B18.29.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 3B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Number of Flutes: 5

Overall Length: 3.937 in

Series: Enorm 2-Z/E CU513510

Shank Diameter: 0.367 in

Square Size: 0.275 in

Tap Drill Size: 0.393 in

Thread Length: 0.866 in

Thread Size: 3/8-16

Thread Standard: UNC

Type: Form E Reduced Shank

The Enorm Z/E design is typically for blind hole threads in long chipping materials
The fast spiral flute (45 deg) provides good chip removal from blind holes
Z designates a tool design for CNC controlled machines with synchronous feed control
Short, form E (1.5-2 P) chamfer length
Bright finished for extended tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge STI Tap, Form E Reduced Shank, Series: Enorm 2-Z/E CU513510, Measurement System: Imperial, 3/8-16 Thread, UNC Thread Standard, 0.866 in Thread Length, 3.937 in Overall Length, 5 Flutes, Bottoming Chamfer, Right Hand Cutting Direction, Class of Fit: 3B, 0.367 in Shank Diameter, 0.393 in Tap Drill, 0.275 in Square, HSS-E, Bright

DIN/ANSI Standard|ASME B18.29.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
