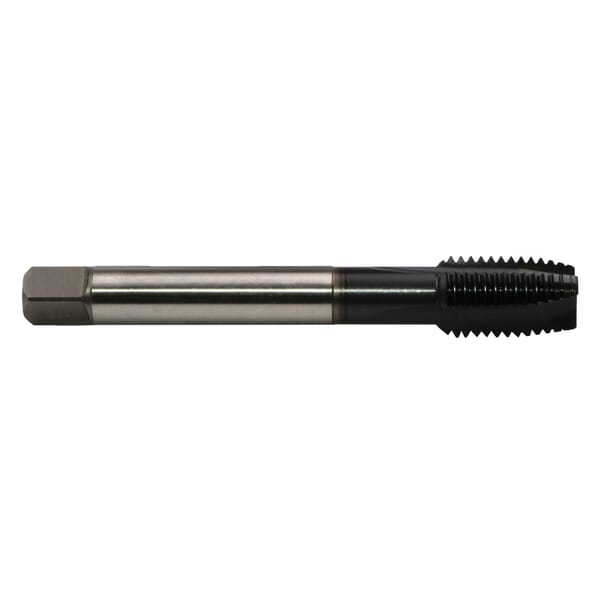

Emuge CU20S810.5641 Rekord B-AL CU20S810 Form B STI Tap, 3/8-24 Thread, 3 Flutes, 3B Class of Fit, Plug Chamfer, Right Hand Cutting, UNF Thread

ManufacturerEmuge

Part #826501600

MFG #CU20S810.5641

Emuge STI Tap, Form B, Series: Rekord B-AL CU20S810, Measurement System: Imperial, 3/8-24 Thread, UNF Thread Standard, 3.937 in Overall Length, 3 Flutes, Plug Chamfer, Right Hand Cutting Direction, Class of Fit: 3B, 0.323 in Shank Diameter, HSS-E, GLT-8 Coated

$89.84

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 3B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-8 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.937 in

Series: Rekord B-AL CU20S810

Shank Diameter: 0.323 in

Thread Size: 3/8-24

Thread Standard: UNF

Type: Form B

Rekord B-AL tap is a plug style, through hole designed for wrought aluminum materials
Higher rake angle provides better shearing action for maximum tool life
Best suited for through hole applications
PVD applied GLT-8 non-stick/low friction coating is well suited for threading aluminum alloys
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge STI Tap, Form B, Series: Rekord B-AL CU20S810, Measurement System: Imperial, 3/8-24 Thread, UNF Thread Standard, 3.937 in Overall Length, 3 Flutes, Plug Chamfer, Right Hand Cutting Direction, Class of Fit: 3B, 0.323 in Shank Diameter, HSS-E, GLT-8 Coated
