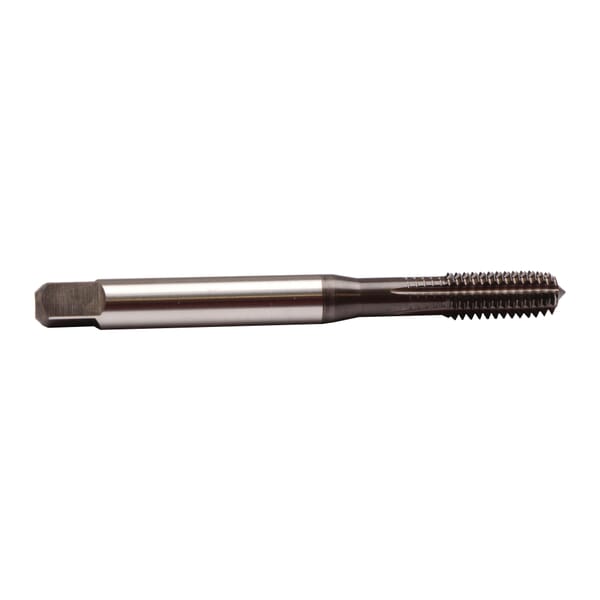

Emuge BU921000.5037 Druck 1-STEEL-SN BU921000 Form C Reinforced Shank Thread Forming Tap, #4-48 Thread

ManufacturerEmuge

Part #826501234

MFG #BU921000.5037

Emuge Thread Forming Tap, Form C Reinforced Shank, Series: Druck 1-STEEL-SN BU921000, Measurement System: Imperial, #4-48, UNF, Modified Bottoming Chamfer, 0.433 in Thread Length, 2.205 in Overall Length, Right Hand Cutting, Class of Fit: 2BX, 0.141 in Shank Dia, 0.1031 in Tap Drill, 0.11 in Square Size, HSS-E, NT Coated

$76.18

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: NT Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Overall Length: 2.205 in

Series: Druck 1-STEEL-SN BU921000

Shank Diameter: 0.141 in

Square Size: 0.11 in

Tap Drill Size: 0.1031 in

Thread Length: 0.433 in

Thread Size: #4-48

Thread Standard: UNF

Type: Form C Reinforced Shank

The druck STEEL roll form tap is a universal design for the chipless production of internal threads, blind and through hole
Lubrication grooves improve surface finish
NT nitrided surface hardening process for wear resistance
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

DIN/ANSI Standard|ASME B1.1|DIN 2174|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge Thread Forming Tap, Form C Reinforced Shank, Series: Druck 1-STEEL-SN BU921000, Measurement System: Imperial, #4-48, UNF, Modified Bottoming Chamfer, 0.433 in Thread Length, 2.205 in Overall Length, Right Hand Cutting, Class of Fit: 2BX, 0.141 in Shank Dia, 0.1031 in Tap Drill, 0.11 in Square Size, HSS-E, NT Coated
