Emuge BU51S810.5609 Enorm-Al BU51S810 Form E STI Tap, #2-56 Thread, 3B Class of Fit, Plug Chamfer, Right Hand Cutting, UNC Thread

ManufacturerEmuge

Part #826501195

MFG #BU51S810.5609

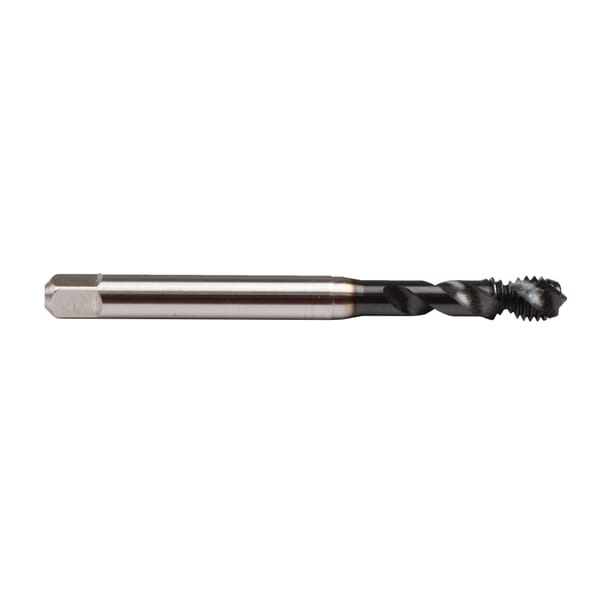

Emuge STI Tap, Form E, Series: Enorm-Al BU51S810, Measurement System: Imperial, #2-56 Thread, UNC Thread Standard, 0.276 in Thread Length, 1.772 in Overall Length, Plug Chamfer, Right Hand Cutting Direction, Class of Fit: 3B, 0.141 in Shank Diameter, HSS-E, GLT-8 Coated

$88.83

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 3B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-8 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Overall Length: 1.772 in

Series: Enorm-Al BU51S810

Shank Diameter: 0.141 in

Thread Length: 0.276 in

Thread Size: #2-56

Thread Standard: UNC

Type: Form E

The Enorm AL/E design is typically for blind hole threads in long chipping materials
The fast spiral flute (45 deg) provides good chip removal from blind holes
AL designates a design specifically for wrought aluminum alloys
GLT-8 non-stick/low friction PVD coating well suited for machining of aluminum alloys
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Emuge STI Tap, Form E, Series: Enorm-Al BU51S810, Measurement System: Imperial, #2-56 Thread, UNC Thread Standard, 0.276 in Thread Length, 1.772 in Overall Length, Plug Chamfer, Right Hand Cutting Direction, Class of Fit: 3B, 0.141 in Shank Diameter, HSS-E, GLT-8 Coated

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 3B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: GLT-8 Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Overall Length: 1.772 in

Series: Enorm-Al BU51S810

Shank Diameter: 0.141 in

Thread Length: 0.276 in

Thread Size: #2-56

Thread Standard: UNC

Type: Form E

The Enorm AL/E design is typically for blind hole threads in long chipping materials
The fast spiral flute (45 deg) provides good chip removal from blind holes
AL designates a design specifically for wrought aluminum alloys
GLT-8 non-stick/low friction PVD coating well suited for machining of aluminum alloys
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
