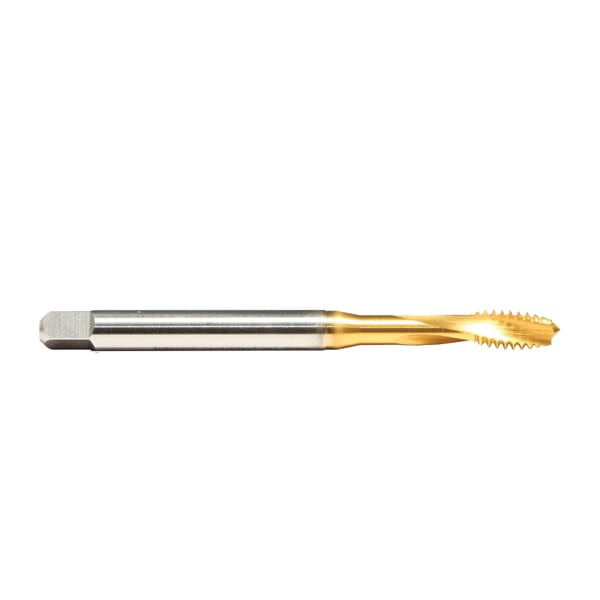

Emuge BU453701.5044 Rekord 1D-Z BU453701 Form C Reinforced Shank Spiral Flute Tap, Right Hand Cutting, 5/16-24 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, HSS-E

ManufacturerEmuge

Part #826500957

MFG #BU453701.5044

Emuge Spiral Flute Tap, Form C Reinforced Shank, Series: Rekord 1D-Z BU453701, Measurement System: Imperial, UNF, 5/16-24, Modified Bottoming Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.787 in Thread Length, 3.543 in Overall Length, 0.318 in Shank Dia, 2.283 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, No Through Coolant (Yes/No)

$64.41

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.543 in

Series: Rekord 1D-Z BU453701

Shank Diameter: 0.318 in

Shank Length: 2.283 in

Thread Length: 0.787 in

Thread Size: 5/16-24

Thread Standard: UNF

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank

Z designation for CNC controlled machine applications
TiN coated for additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Flute Tap, Form C Reinforced Shank, Series: Rekord 1D-Z BU453701, Measurement System: Imperial, UNF, 5/16-24, Modified Bottoming Chamfer, 3 Flutes, HSS-E, TiN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.787 in Thread Length, 3.543 in Overall Length, 0.318 in Shank Dia, 2.283 in Shank Length, Right Hand Flute Direction, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, No Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
