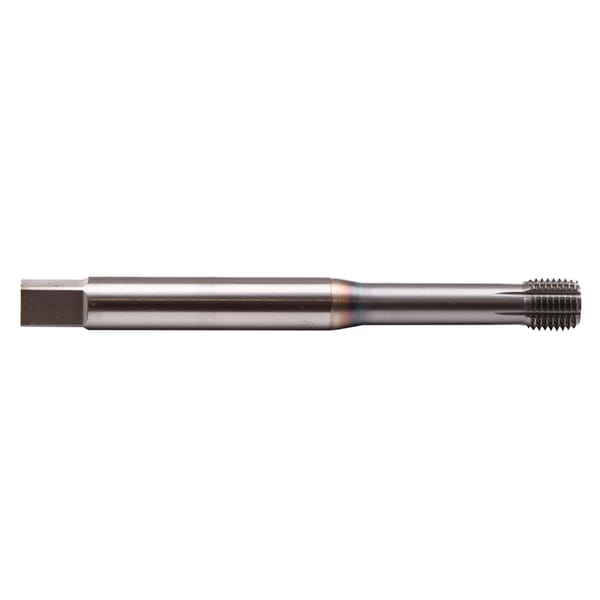

Emuge BU44Q200.5009 InnoForm 1-GAL/E-SN IKZ BU44Q200 Form E Thread Forming Tap, 1/4-20 Thread

ManufacturerEmuge

Part #826500885

MFG #BU44Q200.5009

Emuge Thread Forming Tap, Form E, Series: InnoForm 1-GAL/E-SN IKZ BU44Q200, Measurement System: Imperial, 1/4-20 Thread, UNC Thread Standard, Bottoming Chamfer, 0.669 in Thread Length, 3.15 in Overall Length, Right Hand Cutting Direction, Class of Fit: 2BX, 0.255 in Shank Diameter, 1.97 in Shank Length, HSS-E, TiCN Coated

$90.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Overall Length: 3.15 in

Series: InnoForm 1-GAL/E-SN IKZ BU44Q200

Shank Diameter: 0.255 in

Shank Length: 1.97 in

Thread Length: 0.669 in

Thread Size: 1/4-20

Thread Standard: UNC

Type: Form E

IKZ - axial coolant hole design
Lubrication grooves
TiCN coated for wear resistance and added tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Cast aluminum materials exert a very strong abrasive stress on the forming lobes of a cold forming tap during work. In addition, the ductile properties of these rather brittle materials must be regarded as relatively poor. In order to achieve easier thread production and better wear resistance even under these bad conditions, InnoForm GAL/E has a specially adjusted geometry and an additional hard surface coating.

Manufacturer Name: Emuge-Franken

Chamfer Type: Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Overall Length: 3.15 in

Series: InnoForm 1-GAL/E-SN IKZ BU44Q200

Shank Diameter: 0.255 in

Shank Length: 1.97 in

Thread Length: 0.669 in

Thread Size: 1/4-20

Thread Standard: UNC

Type: Form E

IKZ - axial coolant hole design
Lubrication grooves
TiCN coated for wear resistance and added tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

DIN/ANSI Standard|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Cast aluminum materials exert a very strong abrasive stress on the forming lobes of a cold forming tap during work. In addition, the ductile properties of these rather brittle materials must be regarded as relatively poor. In order to achieve easier thread production and better wear resistance even under these bad conditions, InnoForm GAL/E has a specially adjusted geometry and an additional hard surface coating.
