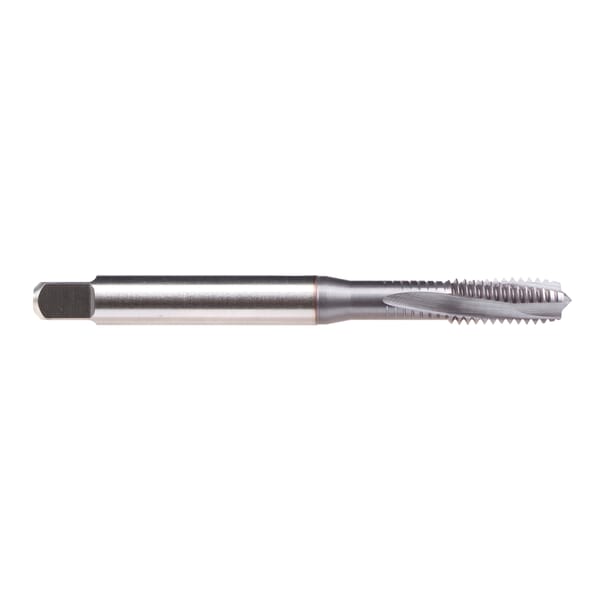

Emuge BU35J411.5011 Rekord 1DF-NI BU35J411 Form C Reinforced Shank Slow Helix Spiral Flute Tap, Right Hand Cutting, 3/8-16 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiCN Coated, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Emuge-Franken

Emuge BU35J411.5011 Rekord 1DF-NI BU35J411 Form C Reinforced Shank Slow Helix Spiral Flute Tap, Right Hand Cutting, 3/8-16 Thread, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826500789

MFG #BU35J411.5011

Emuge Spiral Flute Tap, Form C Reinforced Shank Slow Helix, Series: 759, Measurement System: Imperial, UNC, 3/8-16, Modified Bottoming Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, 2.402 in Shank Length, Right Hand Flute Direction, Copper Alloys, Nickel Base Alloys, Cobalt Base Alloys and Iron Base Alloys Material Application, No Through Coolant (Yes/No)

$96.11

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Copper Alloys, Nickel Base Alloys, Cobalt Base Alloys and Iron Base Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.937 in

Series: Rekord 1DF-NI BU35J411

Shank Diameter: 0.381 in

Shank Length: 2.402 in

Thread Length: 0.866 in

Thread Size: 3/8-16

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank Slow Helix

Rekord DF-NI semi-bottoming taps with VHC - variable helix correction
A specially ground "F" relief geometry in the primary cutting zone, that generates a smaller and tightly rolled chip formation
The resulting benefit is enhanced chip control to prevent the damaging effects of chips jamming in the tap teeth on both forward and reverse
TiCN coated for wear resistance and additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Flute Tap, Form C Reinforced Shank Slow Helix, Series: 759, Measurement System: Imperial, UNC, 3/8-16, Modified Bottoming Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, 2.402 in Shank Length, Right Hand Flute Direction, Copper Alloys, Nickel Base Alloys, Cobalt Base Alloys and Iron Base Alloys Material Application, No Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Copper Alloys, Nickel Base Alloys, Cobalt Base Alloys and Iron Base Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.937 in

Series: Rekord 1DF-NI BU35J411

Shank Diameter: 0.381 in

Shank Length: 2.402 in

Thread Length: 0.866 in

Thread Size: 3/8-16

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank Slow Helix

Rekord DF-NI semi-bottoming taps with VHC - variable helix correction
A specially ground "F" relief geometry in the primary cutting zone, that generates a smaller and tightly rolled chip formation
The resulting benefit is enhanced chip control to prevent the damaging effects of chips jamming in the tap teeth on both forward and reverse
TiCN coated for wear resistance and additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Flute Tap, Form C Reinforced Shank Slow Helix, Series: 759, Measurement System: Imperial, UNC, 3/8-16, Modified Bottoming Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2BX, Right Hand Cutting, 0.866 in Thread Length, 3.937 in Overall Length, 0.381 in Shank Dia, 2.402 in Shank Length, Right Hand Flute Direction, Copper Alloys, Nickel Base Alloys, Cobalt Base Alloys and Iron Base Alloys Material Application, No Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
