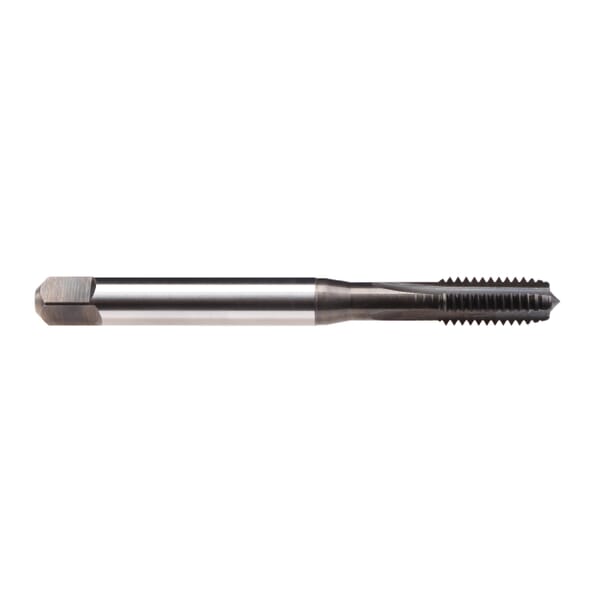

Emuge BU100501.5003 Rekord 1A-H BU100501 Form C Reinforced Shank Straight Flute Machine Tap, Right Hand Cutting, #4-40 Thread, Modified Bottoming Chamfer, 3 Flutes, NT Coated, HSS-E

ManufacturerEmuge

Part #826500442

MFG #BU100501.5003

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: 300, Measurement System: Imperial, UNC, #4-40, Modified Bottoming Chamfer, 3 Flutes, HSS-E, NT Coated, Class of Fit: 2BX, Right Hand Cutting, 0.433 in Thread Length, 2.205 in Overall Length, 0.141 in Shank Dia, Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics Material Application, No Through Coolant (Yes/No)

$38.54

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: NT Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2.205 in

Series: Rekord 1A-H BU100501

Shank Diameter: 0.141 in

Thread Length: 0.433 in

Thread Size: #4-40

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank

Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials
NT nitride surface treatment for increased wear resistance
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: 300, Measurement System: Imperial, UNC, #4-40, Modified Bottoming Chamfer, 3 Flutes, HSS-E, NT Coated, Class of Fit: 2BX, Right Hand Cutting, 0.433 in Thread Length, 2.205 in Overall Length, 0.141 in Shank Dia, Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics Material Application, No Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: 2BX

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: NT Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2.205 in

Series: Rekord 1A-H BU100501

Shank Diameter: 0.141 in

Thread Length: 0.433 in

Thread Size: #4-40

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank

Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials
NT nitride surface treatment for increased wear resistance
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Straight Flute Machine Tap, Form C Reinforced Shank, Series: 300, Measurement System: Imperial, UNC, #4-40, Modified Bottoming Chamfer, 3 Flutes, HSS-E, NT Coated, Class of Fit: 2BX, Right Hand Cutting, 0.433 in Thread Length, 2.205 in Overall Length, 0.141 in Shank Dia, Steel, Cast Iron, Copper Alloys, Special Materials and Synthetics Material Application, No Through Coolant (Yes/No)

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
