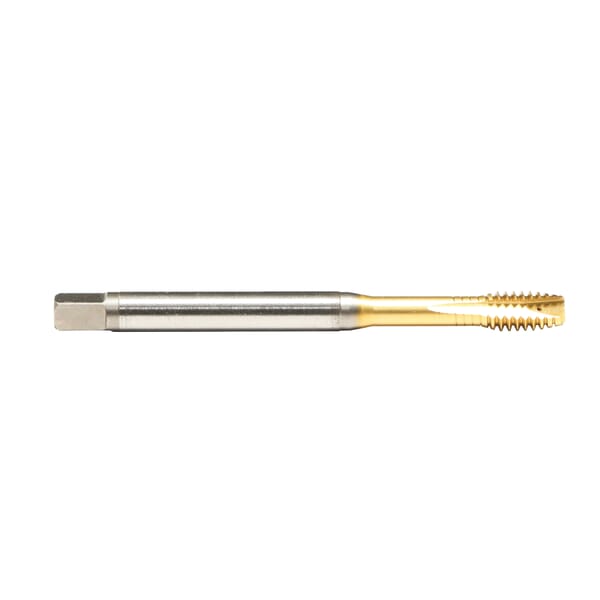

Emuge BU089300.5043 Rekord 1B-VA-IKZN BU089300 Form B Reinforced Shank Straight Flute Spiral Point Tap, Right Hand Cutting, 1/4-28 Thread, Plug Chamfer, 3 Flutes, TiCN Coated, HSS-E

ManufacturerEmuge

Part #826500436

MFG #BU089300.5043

Emuge Spiral Point Tap, Form B Reinforced Shank Straight Flute, Series: Rekord 1B-VA-IKZN BU089300, Measurement System: Imperial, UNF Thread Standard, 1/4-28 Thread, Plug Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 0.669 in Thread Length, 3.15 in Overall Length, 0.255 in Shank Diameter, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant

$113.43

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.15 in

Series: Rekord 1B-VA-IKZN BU089300

Shank Diameter: 0.255 in

Thread Length: 0.669 in

Thread Size: 1/4-28

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Type: Form B Reinforced Shank Straight Flute

IKZN - radial coolant hole design
Spiral point creates tight curled chips that are pushed ahead of the tap
TiCN coated for additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Point Tap, Form B Reinforced Shank Straight Flute, Series: Rekord 1B-VA-IKZN BU089300, Measurement System: Imperial, UNF Thread Standard, 1/4-28 Thread, Plug Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 0.669 in Thread Length, 3.15 in Overall Length, 0.255 in Shank Diameter, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Plug

Class of Fit: 2B

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: TiCN Coated

Manufacturer Name: Emuge-Franken

Material: HSS-E

Material Application: Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3.15 in

Series: Rekord 1B-VA-IKZN BU089300

Shank Diameter: 0.255 in

Thread Length: 0.669 in

Thread Size: 1/4-28

Thread Standard: UNF

Through Coolant (Yes/No): Yes

Type: Form B Reinforced Shank Straight Flute

IKZN - radial coolant hole design
Spiral point creates tight curled chips that are pushed ahead of the tap
TiCN coated for additional tool life
DIN/ANSI taps made with Emuge trademark long shanks - DIN length for extra reach and ANSI shanks

Emuge Spiral Point Tap, Form B Reinforced Shank Straight Flute, Series: Rekord 1B-VA-IKZN BU089300, Measurement System: Imperial, UNF Thread Standard, 1/4-28 Thread, Plug Chamfer, 3 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 0.669 in Thread Length, 3.15 in Overall Length, 0.255 in Shank Diameter, Steel, Stainless Steel, Cast Iron, Aluminum Alloys and Copper Alloys Material Application, Yes Through Coolant

DIN/ANSI Standard|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
