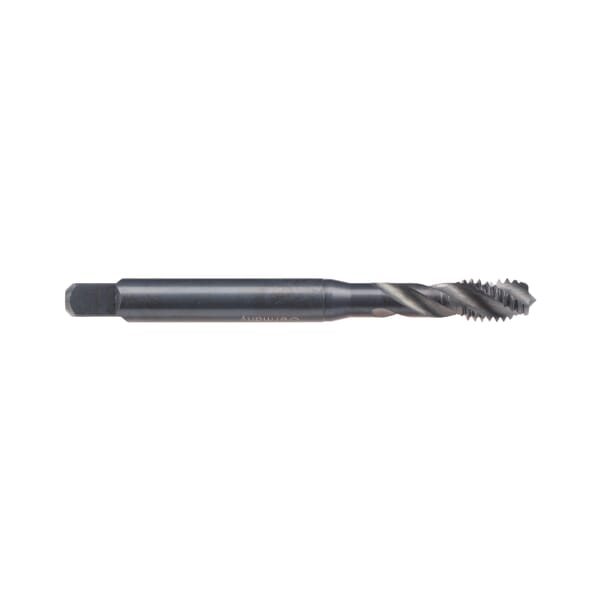

Emuge AU503243.5007 Enorm VA AU503243 Form C Reinforced Shank Spiral Flute Tap, Right Hand Cutting, #10-24 Thread, Oversize/GH7 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Ne2 Coated, HSS-E

ManufacturerEmuge

Part #826500290

MFG #AU503243.5007

Emuge Spiral Flute Tap, Form C Reinforced Shank, Series: Turbo 10, Measurement System: Imperial, UNC, #10-24, Modified Bottoming Chamfer, 3 Flutes, HSS-E, Ne2 Coated, Class of Fit: Oversize, Right Hand Cutting, 0.591 in Thread Length, 2.38 in Overall Length, 0.194 in Shank Dia, 1.435 in Shank Length, Right Hand Flute Direction, Oversize/GH7 Thread Limit, No Through Coolant (Yes/No)

$42.04

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: Oversize

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Ne2 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2.38 in

Series: Enorm VA AU503243

Shank Diameter: 0.194 in

Shank Length: 1.435 in

Thread Length: 0.591 in

Thread Limit: Oversize/GH7

Thread Size: #10-24

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank

The fast spiral flute (35 deg) provides good chip removal from blind holes
VA designates that the tool is designed for stainless steel and steel alloys
Oversized thread tolerance to accommodate post plating operations in many industries
Taps are manufactured with an oversize tolerance of either GH7 (+0.0035 in) or GH11 (+0.005 in)
NE2 surface treatment combines a nitriding process with steam oxide for increased surface hardness and enhanced lubricity to resist chip welding
ANSI/ANSI standard dimensions for overall length and shank size

Emuge Spiral Flute Tap, Form C Reinforced Shank, Series: Turbo 10, Measurement System: Imperial, UNC, #10-24, Modified Bottoming Chamfer, 3 Flutes, HSS-E, Ne2 Coated, Class of Fit: Oversize, Right Hand Cutting, 0.591 in Thread Length, 2.38 in Overall Length, 0.194 in Shank Dia, 1.435 in Shank Length, Right Hand Flute Direction, Oversize/GH7 Thread Limit, No Through Coolant (Yes/No)

ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer

Manufacturer Name: Emuge-Franken

Chamfer Type: Modified Bottoming

Class of Fit: Oversize

Country of Origin: DE

Cutting Direction: Right Hand

Finish/Coating: Ne2 Coated

Flute Direction: Right Hand

Manufacturer Name: Emuge-Franken

Material: HSS-E

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 2.38 in

Series: Enorm VA AU503243

Shank Diameter: 0.194 in

Shank Length: 1.435 in

Thread Length: 0.591 in

Thread Limit: Oversize/GH7

Thread Size: #10-24

Thread Standard: UNC

Through Coolant (Yes/No): No

Type: Form C Reinforced Shank

The fast spiral flute (35 deg) provides good chip removal from blind holes
VA designates that the tool is designed for stainless steel and steel alloys
Oversized thread tolerance to accommodate post plating operations in many industries
Taps are manufactured with an oversize tolerance of either GH7 (+0.0035 in) or GH11 (+0.005 in)
NE2 surface treatment combines a nitriding process with steam oxide for increased surface hardness and enhanced lubricity to resist chip welding
ANSI/ANSI standard dimensions for overall length and shank size

Emuge Spiral Flute Tap, Form C Reinforced Shank, Series: Turbo 10, Measurement System: Imperial, UNC, #10-24, Modified Bottoming Chamfer, 3 Flutes, HSS-E, Ne2 Coated, Class of Fit: Oversize, Right Hand Cutting, 0.591 in Thread Length, 2.38 in Overall Length, 0.194 in Shank Dia, 1.435 in Shank Length, Right Hand Flute Direction, Oversize/GH7 Thread Limit, No Through Coolant (Yes/No)

ANSI/ANSI Specified|ASME B1.1|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
